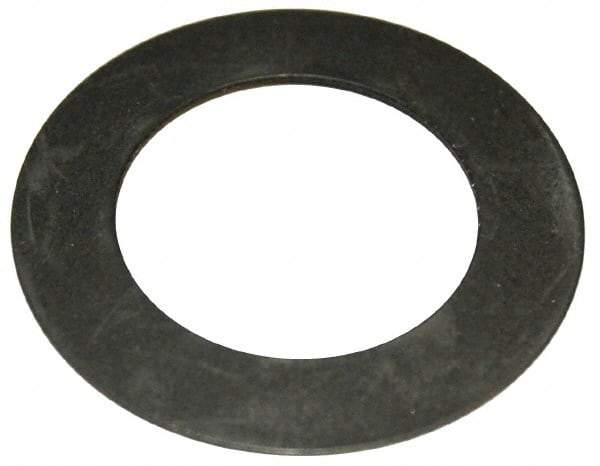

Gardner Spring - 9/16" ID, Grade 1074 Steel, Belleville Disc Spring for Ball Bearing - 1.012" OD, 0.035" High, 0.016" Thick
Item #: 87780631
Brand: Gardner Spring
Model #: BB-12
Exact Tooling IR#: 04
Features and Benefits
Belleville disc springs for ball bearings are used in preloading applications to ensure proper positioning and fit of bearings.
| Product Specifications | |
|---|---|
| Type | Belleville Disc Spring for Ball Bearings |
| System of Measurement | Metric |
| Inside Diameter (Decimal Inch) | 0.5630 |
| Inside Diameter (mm) | 14.30 |
| Material | Steel |
| Material Grade | 1074 |
| Outside Diameter (Decimal Inch) | 1.0120 |
| Outside Diameter (mm) | 25.70 |
| Thickness (mm) | 0.41 |
| Thickness (Decimal Inch) | 0.0160 |
| Overall Height (mm) | 0.89 |
| Overall Height (Decimal Inch) | 0.0350 |
| Deflection (Decimal Inch) | 0.0150 |
| Deflection (mm) | 0.38 |
| Load at Deflection (Lb.) | 14.16 |
| Load at Deflection (N) | 63.00 |
| Ball Bearing Number | 629; 6000 |
