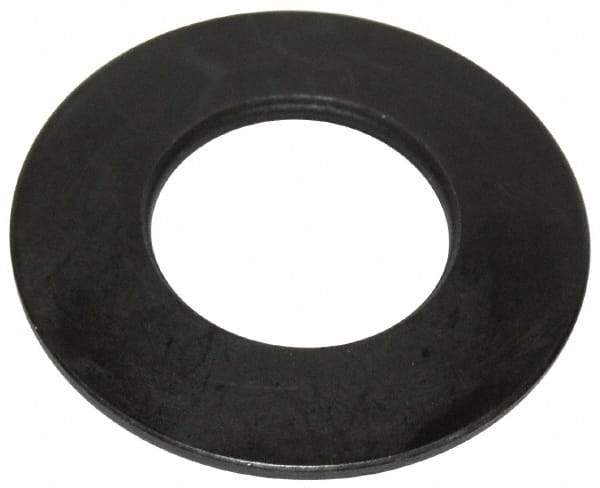

Gardner Spring - 1.6142" ID, Grade 50 CrV Chrome Vanadium Steel, Belleville Disc Spring - 3.1496" OD, 0.2087" High, 0.1181" Thick
Item #: 87780227
Brand: Gardner Spring
Model #: GMB-325
Exact Tooling IR#: 04
Features and Benefits
Belleville disc springs, also known as conical washers, have a curved shape that creates a spring-like action. They are used in applications that require heavy loads.
| Product Specifications | |
|---|---|
| Type | Belleville Disc Spring |
| System of Measurement | Metric |
| Inside Diameter (Decimal Inch) | 1.6142 |
| Inside Diameter (mm) | 41.00 |
| Material | Chrome Vanadium Steel |
| Material Grade | 50 CrV |
| Outside Diameter (Decimal Inch) | 3.1496 |
| Outside Diameter (mm) | 80.00 |
| Thickness (mm) | 3.00 |
| Thickness (Decimal Inch) | 0.1181 |
| Overall Height (mm) | 5.30 |
| Overall Height (Decimal Inch) | 0.2087 |
| Deflection (Decimal Inch) | 0.0681 |
| Deflection (mm) | 1.73 |
| Deflection to Flat (Decimal Inch) | 0.0906 |
| Deflection to Flat (mm) | 2.30 |
| Load at Flat (N) | 12844.00 |
| Load at Deflection (N) | 10539.00 |
