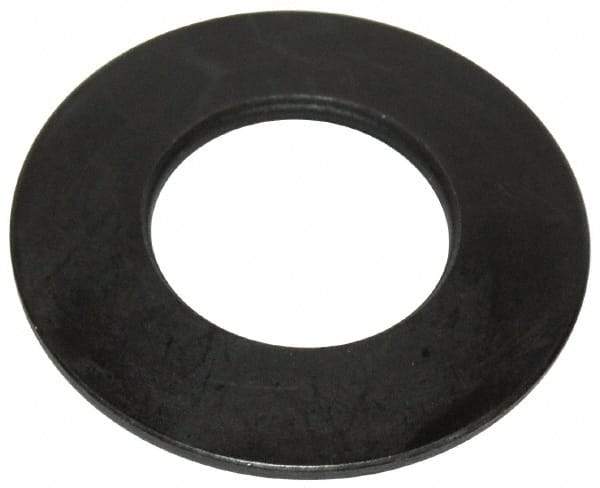

Gardner Spring - 9/16" ID, Grade 50 CrV Chrome Vanadium Steel, Belleville Disc Spring - 1.3386" OD, 0.1004" High, 0.0591" Thick
Item #: 87779963
Brand: Gardner Spring
Model #: GMB-200
Exact Tooling IR#: 04
Features and Benefits
Belleville disc springs, also known as conical washers, have a curved shape that creates a spring-like action. They are used in applications that require heavy loads.
| Product Specifications | |
|---|---|
| Type | Belleville Disc Spring |
| System of Measurement | Metric |
| Inside Diameter (Decimal Inch) | 0.5630 |
| Inside Diameter (mm) | 14.30 |
| Material | Chrome Vanadium Steel |
| Material Grade | 50 CrV |
| Outside Diameter (Decimal Inch) | 1.3386 |
| Outside Diameter (mm) | 34.00 |
| Thickness (mm) | 1.50 |
| Thickness (Decimal Inch) | 0.0591 |
| Overall Height (mm) | 2.55 |
| Overall Height (Decimal Inch) | 0.1004 |
| Deflection (Decimal Inch) | 0.0311 |
| Deflection (mm) | 0.79 |
| Deflection to Flat (Decimal Inch) | 0.0413 |
| Deflection to Flat (mm) | 1.05 |
| Load at Flat (N) | 3704.00 |
| Load at Deflection (N) | 2997.00 |
