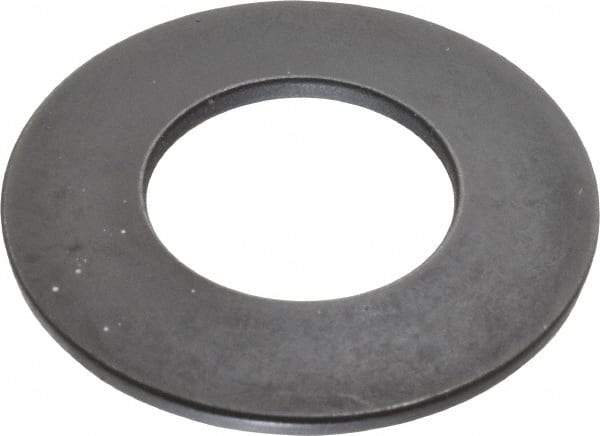

Gardner Spring - 0.5591" ID, Grade 50 CrV Chrome Vanadium Steel, Belleville Disc Spring - 1.1024" OD, 0.0846" High, 0.0591" Thick
Item #: 87779906
Brand: Gardner Spring
Model #: GMB-170
Exact Tooling IR#: 04
Features and Benefits
Belleville disc springs, also known as conical washers, have a curved shape that creates a spring-like action. They are used in applications that require heavy loads.
| Product Specifications | |
|---|---|
| Type | Belleville Disc Spring |
| System of Measurement | Metric |
| Inside Diameter (Decimal Inch) | 0.5591 |
| Inside Diameter (mm) | 14.20 |
| Material | Chrome Vanadium Steel |
| Material Grade | 50 CrV |
| Outside Diameter (Decimal Inch) | 1.1024 |
| Outside Diameter (mm) | 28.00 |
| Thickness (mm) | 1.50 |
| Thickness (Decimal Inch) | 0.0591 |
| Overall Height (mm) | 2.15 |
| Overall Height (Decimal Inch) | 0.0846 |
| Deflection (Decimal Inch) | 0.0193 |
| Deflection (mm) | 0.49 |
| Deflection to Flat (Decimal Inch) | 0.0256 |
| Deflection to Flat (mm) | 0.65 |
| Load at Flat (N) | 3680.00 |
| Load at Deflection (N) | 2854.00 |
