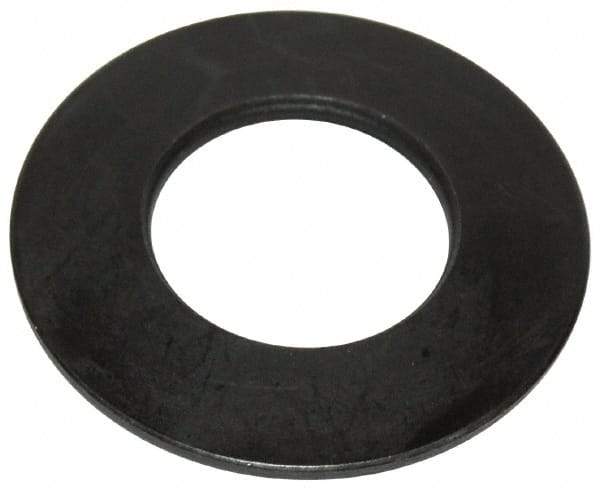

Gardner Spring - 0.5591" ID, Grade 1074 Steel, Belleville Disc Spring - 1.1024" OD, 0.0709" High, 0.0394" Thick
Item #: 87779864
Brand: Gardner Spring
Model #: GMB-145
Exact Tooling IR#: 04
Features and Benefits
Belleville disc springs, also known as conical washers, have a curved shape that creates a spring-like action. They are used in applications that require heavy loads.
| Product Specifications | |
|---|---|
| Type | Belleville Disc Spring |
| System of Measurement | Metric |
| Inside Diameter (Decimal Inch) | 0.5591 |
| Inside Diameter (mm) | 14.20 |
| Material | Steel |
| Material Grade | 1074 |
| Outside Diameter (Decimal Inch) | 1.1024 |
| Outside Diameter (mm) | 28.00 |
| Thickness (mm) | 1.00 |
| Thickness (Decimal Inch) | 0.0394 |
| Overall Height (mm) | 1.80 |
| Overall Height (Decimal Inch) | 0.0709 |
| Deflection (Decimal Inch) | 0.0236 |
| Deflection (mm) | 0.60 |
| Deflection to Flat (Decimal Inch) | 0.0315 |
| Deflection to Flat (mm) | 0.80 |
| Load at Flat (N) | 1342.00 |
| Load at Deflection (N) | 1107.00 |
