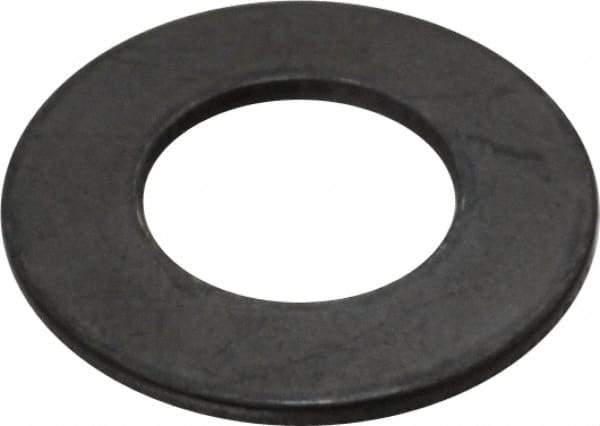

Gardner Spring - 0.3228" ID, Grade 1074 Steel, Belleville Disc Spring - 0.6299" OD, 0.0492" High, 0.0354" Thick
Item #: 87779716
Brand: Gardner Spring
Model #: GMB-70
Exact Tooling IR#: 04
Features and Benefits
Belleville disc springs, also known as conical washers, have a curved shape that creates a spring-like action. They are used in applications that require heavy loads.
| Product Specifications | |
|---|---|
| Type | Belleville Disc Spring |
| System of Measurement | Metric |
| Inside Diameter (Decimal Inch) | 0.3228 |
| Inside Diameter (mm) | 8.20 |
| Material | Steel |
| Material Grade | 1074 |
| Outside Diameter (Decimal Inch) | 0.6299 |
| Outside Diameter (mm) | 16.00 |
| Thickness (mm) | 0.90 |
| Thickness (Decimal Inch) | 0.0354 |
| Overall Height (mm) | 1.25 |
| Overall Height (Decimal Inch) | 0.0492 |
| Deflection (Decimal Inch) | 0.0102 |
| Deflection (mm) | 0.26 |
| Deflection to Flat (Decimal Inch) | 0.0138 |
| Deflection to Flat (mm) | 0.35 |
| Load at Flat (N) | 1319.00 |
| Load at Deflection (N) | 1004.00 |
