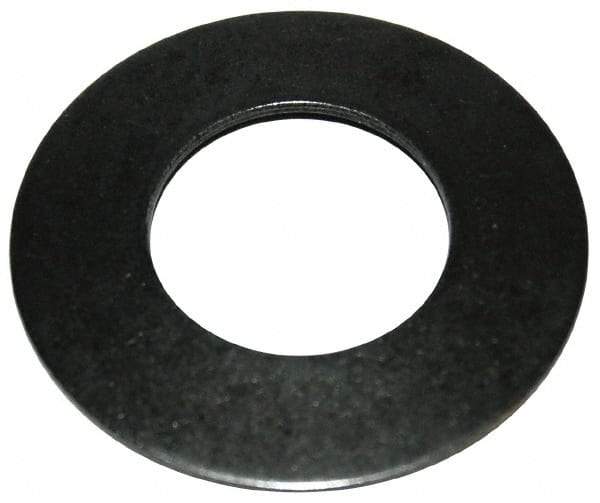

Gardner Spring - 1" Bolt, 1" ID, Grade 17-7 PH Stainless Steel, Belleville Disc Spring - 2" OD, 0.145" High, 0.097" Thick
Item #: 87779559
Brand: Gardner Spring
Model #: MB2000-097-S
Exact Tooling IR#: 04
Features and Benefits
Belleville disc springs, also known as conical washers, have a curved shape that creates a spring-like action. They are used in applications that require heavy loads.
| Product Specifications | |
|---|---|
| Type | Belleville Disc Spring |
| Bolt Size (Inch) | 1 |
| System of Measurement | Inch |
| Inside Diameter (Decimal Inch) | 1.0000 |
| Material | Stainless Steel |
| Material Grade | 17-7 PH |
| Outside Diameter (Decimal Inch) | 2.0000 |
| Thickness (Decimal Inch) | 0.0970 |
| Overall Height (Decimal Inch) | 0.1450 |
| Deflection (Decimal Inch) | 0.0240 |
| Deflection to Flat (Decimal Inch) | 0.0240 |
| Load at Flat (Lb.) | 2122.30 |
| Load at Deflection (Lb.) | 2122.30 |
