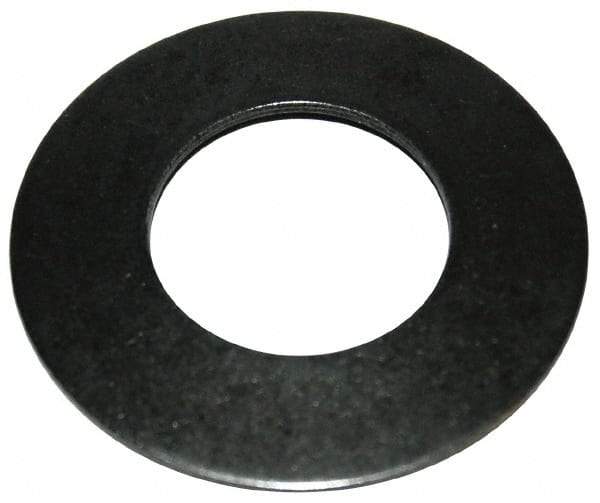

Gardner Spring - 3/4" Bolt, 0.755" ID, Grade 302 Stainless Steel, Belleville Disc Spring - 1-1/2" OD, 0.102" High, 0.06" Thick
Item #: 87779492
Brand: Gardner Spring
Model #: MB1500-062-S
Exact Tooling IR#: 04
Features and Benefits
Belleville disc springs, also known as conical washers, have a curved shape that creates a spring-like action. They are used in applications that require heavy loads.
| Product Specifications | |
|---|---|
| Type | Belleville Disc Spring |
| Bolt Size (Inch) | 3/4 |
| System of Measurement | Inch |
| Inside Diameter (Decimal Inch) | 0.7550 |
| Material | Stainless Steel |
| Material Grade | 302 |
| Outside Diameter (Decimal Inch) | 1.5000 |
| Thickness (Decimal Inch) | 0.0600 |
| Overall Height (Decimal Inch) | 0.1020 |
| Deflection (Decimal Inch) | 0.0260 |
| Deflection to Flat (Decimal Inch) | 0.0210 |
| Minimum Inside Diameter (Decimal Inch) | 0.7550 |
| Maximum Outside Diameter (Decimal Inch) | 1.5000 |
| Load at Flat (Lb.) | 723.10 |
| Load at Deflection (Lb.) | 428.00 |
