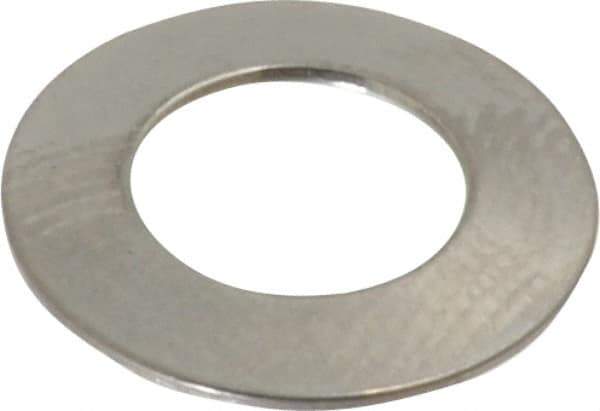

Gardner Spring - 1/4" Bolt, 0.255" ID, Grade 302 Stainless Steel, Belleville Disc Spring - 1/2" OD, 0.034" High, 0.018" Thick
Item #: 87779211
Brand: Gardner Spring
Model #: MB0500-018-S
Exact Tooling IR#: 04
Features and Benefits
Belleville disc springs, also known as conical washers, have a curved shape that creates a spring-like action. They are used in applications that require heavy loads.
| Product Specifications | |
|---|---|
| Type | Belleville Disc Spring |
| Bolt Size (Inch) | 1/4 |
| System of Measurement | Inch |
| Inside Diameter (Decimal Inch) | 0.2550 |
| Material | Stainless Steel |
| Material Grade | 302 |
| Outside Diameter (Decimal Inch) | 0.5000 |
| Thickness (Decimal Inch) | 0.0180 |
| Overall Height (Decimal Inch) | 0.0340 |
| Deflection (Decimal Inch) | 0.0080 |
| Deflection to Flat (Decimal Inch) | 0.0080 |
| Minimum Inside Diameter (Decimal Inch) | 0.2550 |
| Maximum Outside Diameter (Decimal Inch) | 0.5000 |
| Load at Flat (Lb.) | 67.50 |
| Load at Deflection (Lb.) | 43.70 |
