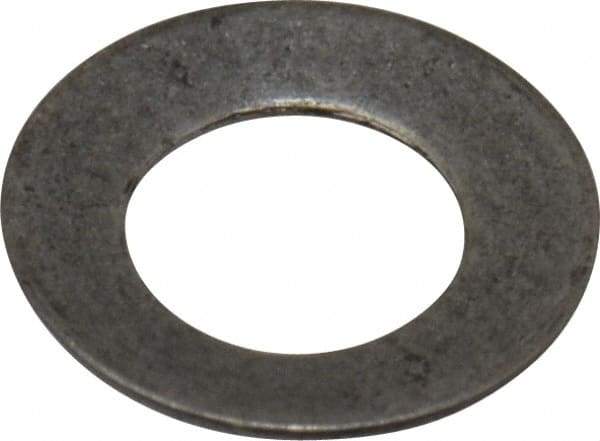

Gardner Spring - 3/32" Bolt, 0.093" ID, Grade 302 Stainless Steel, Belleville Disc Spring - 3/16" OD, 0.015" High, 0.01" Thick
Item #: 87779112
Brand: Gardner Spring
Model #: MB0187-010-S
Exact Tooling IR#: 04
Features and Benefits
Belleville disc springs, also known as conical washers, have a curved shape that creates a spring-like action. They are used in applications that require heavy loads.
| Product Specifications | |
|---|---|
| Type | Belleville Disc Spring |
| Bolt Size (Inch) | 3/32 |
| System of Measurement | Inch |
| Inside Diameter (Decimal Inch) | 0.0930 |
| Material | Stainless Steel |
| Material Grade | 302 |
| Outside Diameter (Decimal Inch) | 0.1870 |
| Thickness (Decimal Inch) | 0.0100 |
| Overall Height (Decimal Inch) | 0.0150 |
| Deflection (Decimal Inch) | 0.0025 |
| Deflection to Flat (Decimal Inch) | 0.0030 |
| Minimum Inside Diameter (Decimal Inch) | 0.0930 |
| Maximum Outside Diameter (Decimal Inch) | 0.1870 |
| Load at Flat (Lb.) | 25.50 |
| Load at Deflection (Lb.) | 16.40 |
