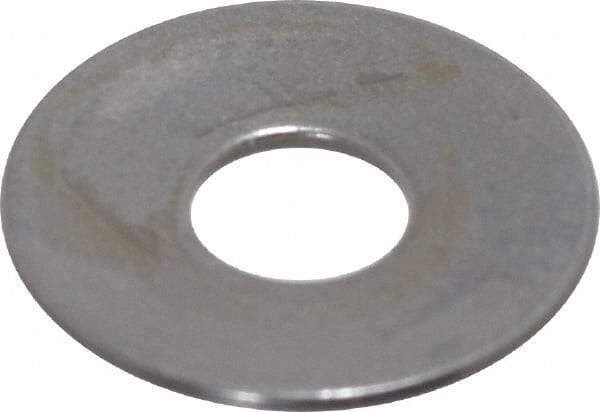

Gardner Spring - 1/4" Bolt, 0.255" ID, Grade 1074 Steel, Belleville Disc Spring - 3/4" OD, 0.054" High, 0.036" Thick
Item #: 87778544
Brand: Gardner Spring
Model #: MB0750-036
Exact Tooling IR#: 04
Features and Benefits
Belleville disc springs, also known as conical washers, have a curved shape that creates a spring-like action. They are used in applications that require heavy loads.
| Product Specifications | |
|---|---|
| Type | Belleville Disc Spring |
| Bolt Size (Inch) | 1/4 |
| Inside Diameter (Decimal Inch) | 0.2550 |
| Material | Steel |
| Material Grade | 1074 |
| Outside Diameter (Decimal Inch) | 0.7500 |
| Thickness (Decimal Inch) | 0.0360 |
| Overall Height (Decimal Inch) | 0.0540 |
| Deflection (Decimal Inch) | 0.0090 |
| Load at Flat (Lb.) | 255.98 |
| Load at Deflection (Lb.) | 139.99 |
