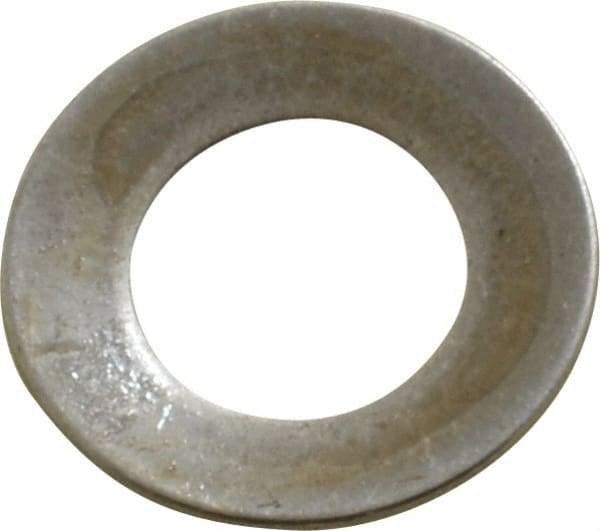

Gardner Spring - 1/4" Bolt, 0.255" ID, Grade 1074 Steel, Belleville Disc Spring - 1/2" OD, 0.036" High, 0.022" Thick
Item #: 87778494
Brand: Gardner Spring
Model #: MB0500-022
Exact Tooling IR#: 04
Features and Benefits
Belleville disc springs, also known as conical washers, have a curved shape that creates a spring-like action. They are used in applications that require heavy loads.
| Product Specifications | |
|---|---|
| Type | Belleville Disc Spring |
| Bolt Size (Inch) | 1/4 |
| System of Measurement | Inch |
| Inside Diameter (Decimal Inch) | 0.2550 |
| Material | Steel |
| Material Grade | 1074 |
| Outside Diameter (Decimal Inch) | 0.5000 |
| Thickness (Decimal Inch) | 0.0220 |
| Overall Height (Decimal Inch) | 0.0360 |
| Deflection (Decimal Inch) | 0.0070 |
| Deflection to Flat (Decimal Inch) | 0.0070 |
| Minimum Inside Diameter (Decimal Inch) | 0.2550 |
| Maximum Outside Diameter (Decimal Inch) | 0.5000 |
| Load at Flat (Lb.) | 115.80 |
| Load at Deflection (Lb.) | 66.70 |
