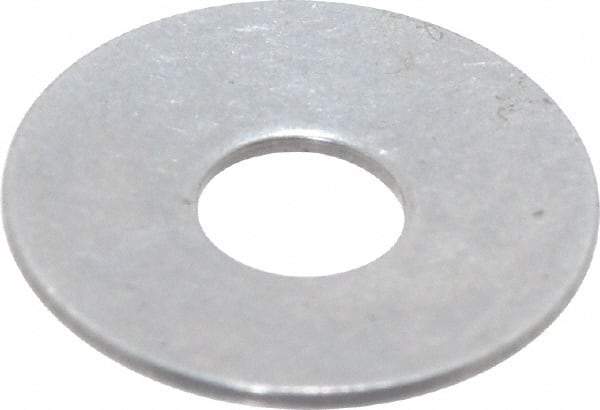

Gardner Spring - #12 Bolt, 0.22" ID, Grade 1074 Steel, Belleville Disc Spring - 11/16" OD, 0.05" High, 0.034" Thick
Item #: 87778478
Brand: Gardner Spring
Model #: MB0687-034
Exact Tooling IR#: 04
Features and Benefits
Belleville disc springs, also known as conical washers, have a curved shape that creates a spring-like action. They are used in applications that require heavy loads.
| Product Specifications | |
|---|---|
| Type | Belleville Disc Spring |
| Screw Size (Wire) | #12 |
| Inside Diameter (Decimal Inch) | 0.2200 |
| Material | Steel |
| Material Grade | 1074 |
| Outside Diameter (Decimal Inch) | 0.6870 |
| Thickness (Decimal Inch) | 0.0340 |
| Overall Height (Decimal Inch) | 0.0500 |
| Deflection (Decimal Inch) | 0.0080 |
| Load at Flat (Lb.) | 227.32 |
| Load at Deflection (Lb.) | 123.10 |
