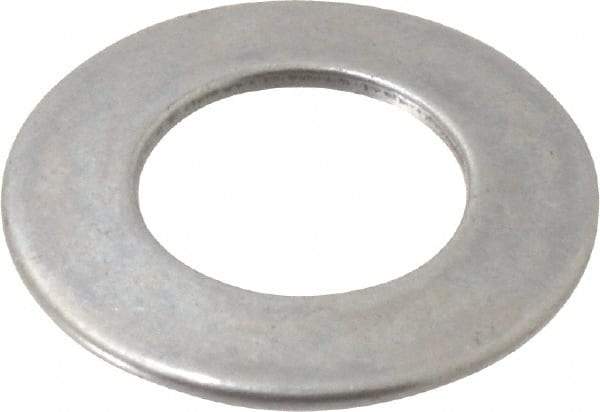

Gardner Spring - #8 Bolt, 0.164" ID, Grade 1074 Steel, Belleville Disc Spring - 0.343" OD, 0.026" High, 0.016" Thick
Item #: 87778353
Brand: Gardner Spring
Model #: MB0343-016
Exact Tooling IR#: 04
Features and Benefits
Belleville disc springs, also known as conical washers, have a curved shape that creates a spring-like action. They are used in applications that require heavy loads.
| Product Specifications | |
|---|---|
| Type | Belleville Disc Spring |
| Screw Size (Wire) | #8 |
| Inside Diameter (Decimal Inch) | 0.1640 |
| Material | Steel |
| Material Grade | 1074 |
| Outside Diameter (Decimal Inch) | 0.3430 |
| Thickness (Decimal Inch) | 0.0160 |
| Overall Height (Decimal Inch) | 0.0260 |
| Deflection (Decimal Inch) | 0.0050 |
| Load at Flat (Lb.) | 65.30 |
| Load at Deflection (Lb.) | 37.43 |
