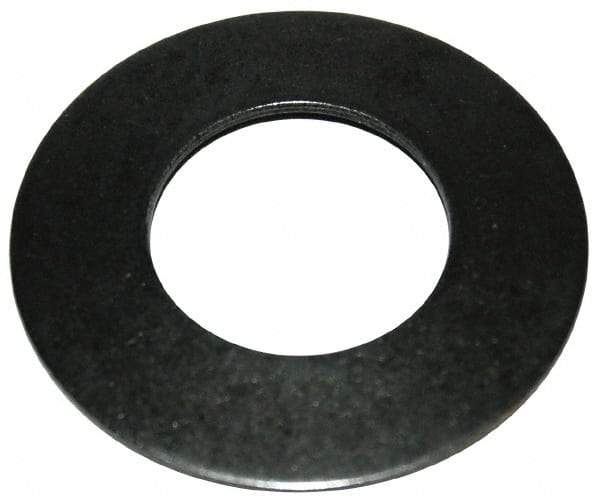

Gardner Spring - #6 Bolt, 0.138" ID, Grade 1074 Steel, Belleville Disc Spring - 7/16" OD, 0.032" High, 0.022" Thick
Item #: 87778312
Brand: Gardner Spring
Model #: MB0437-022
Exact Tooling IR#: 04
Features and Benefits
Belleville disc springs, also known as conical washers, have a curved shape that creates a spring-like action. They are used in applications that require heavy loads.
| Product Specifications | |
|---|---|
| Type | Belleville Disc Spring |
| Screw Size (Wire) | #6 |
| Inside Diameter (Decimal Inch) | 0.1380 |
| Material | Steel |
| Material Grade | 1074 |
| Outside Diameter (Decimal Inch) | 0.4370 |
| Thickness (Decimal Inch) | 0.0220 |
| Overall Height (Decimal Inch) | 0.0320 |
| Deflection (Decimal Inch) | 0.0050 |
| Load at Flat (Lb.) | 95.04 |
| Load at Deflection (Lb.) | 51.20 |
