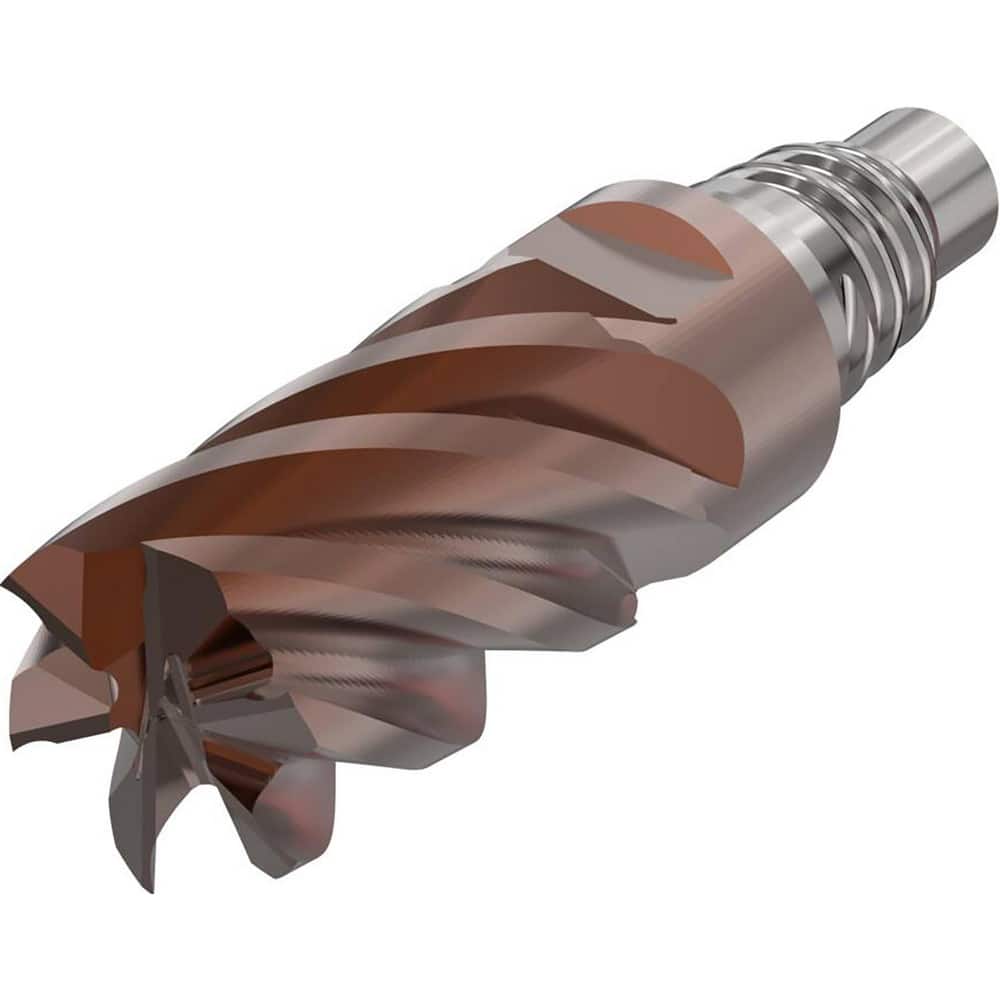

Square End Mill Heads; Mill Diameter (Inch): 1; Mill Diameter (Decimal Inch): 1.0000; Number of Flutes: 6; Length of Cut (Decimal Inch): 1.5000; Length of Cut (Inch): 1-1/2; Connection Type: E25; Overall Length (mm): 74.3000; Overall Length (Decimal Inch)
Item #: 87754917
Brand: Seco
Model #: 10138208
Product Specifications
| Mill Diameter (Inch) | 1 |
| Mill Diameter (Decimal Inch) | 1.0000 |
| Number of Flutes | 6 |
| Length of Cut (Decimal Inch) | 1.5000 |
| Length of Cut (Inch) | 1-1/2 |
| Connection Type | E25 |
| Overall Length (mm) | 74.3000 |
| Overall Length (Decimal Inch) | 2.9252 |
| Material | Solid Carbide |
| Finish/Coating | HXT |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Center Cutting | Center Cutting |
| Flute Type | Helical |
| Helix Angle | 38 |
| Helix Style | Medium |
| Manufacturer Grade | HXT |
| Maximum Helix Angle | 38 |
| Minimum Helix Angle | 38 |
