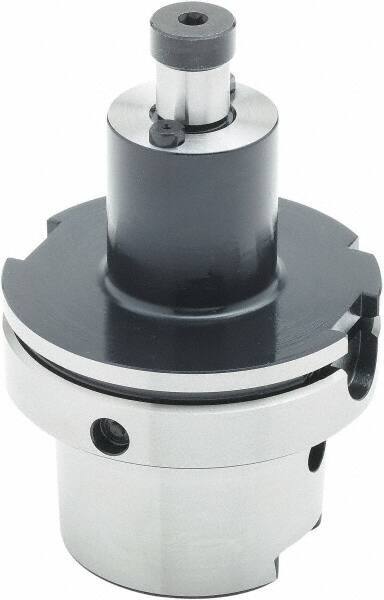

Parlec - HSK100 Taper Shank 3/4" Pilot Diam Shell Mill Holder - 3" Flange to Nose End Projection, 1-3/4" Nose Diam, Through-Spindle Coolant
Item #: 87696423
Brand: Parlec
Model #: H100-75SM3
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | HSK100 |
| Pilot Diameter (Inch) | 3/4 |
| Pilot Diameter (Decimal Inch) | 0.7500 |
| Projection Flange to Nose End (Inch) | 3 |
| Projection Flange to Nose End (Decimal Inch) | 3.0000 |
| Through Coolant | Yes |
| Nose Diameter (Decimal Inch) | 1.7500 |
| Balanced to (RPM) | 40000 |
| TIR (Decimal Inch) | 0.0002 |
| Coolant Type | Through-Spindle |
