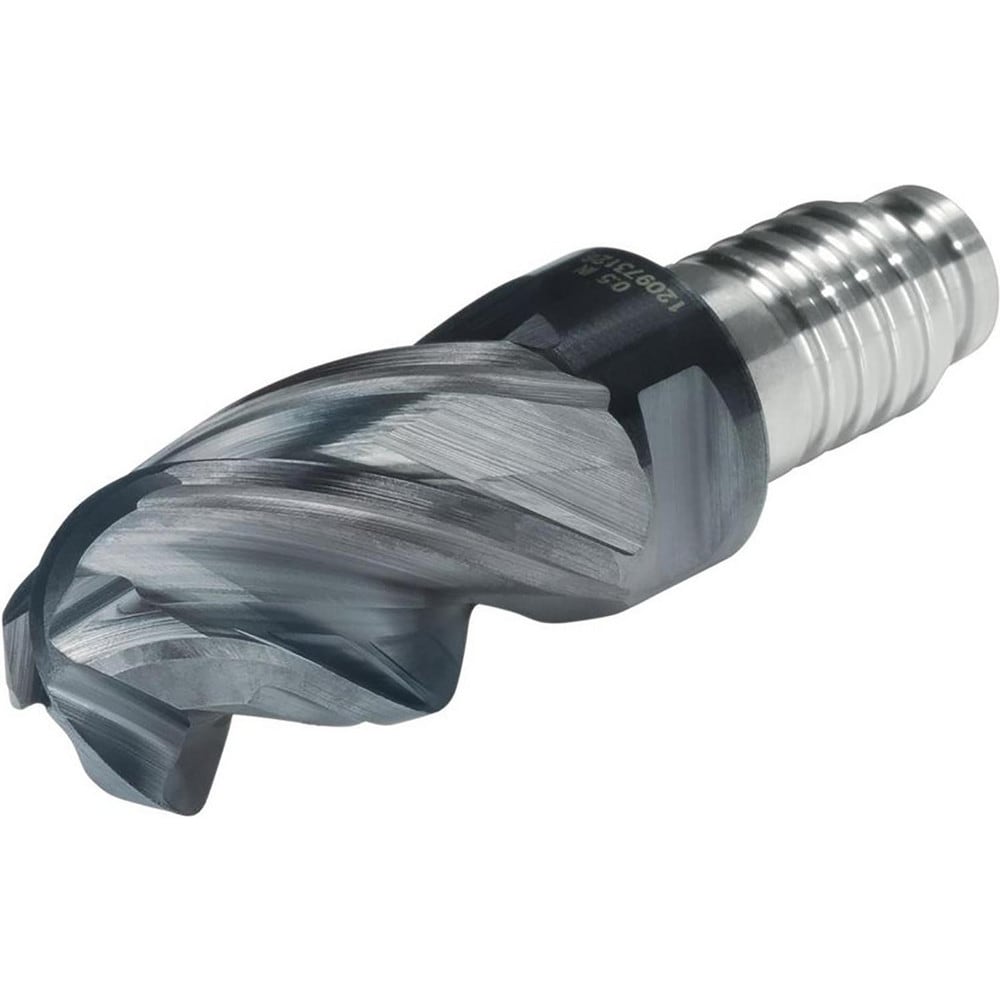

Ball End Mill Heads; Mill Diameter (mm): 12.70; Mill Diameter (Decimal Inch): 0.5000; Length of Cut (mm): 19.0500; Length of Cut (Inch): 3/4; Length Of Cut (Decimal Inch - 4 Decimals): 0.7500; Connection Type: Duo-Lock 12; Overall Length (Decimal Inch): 1
Item #: 84772805
Brand: Kennametal
Model #: 7136714
Product Specifications
| Mill Diameter (mm) | 12.70 |
| Mill Diameter (Decimal Inch) | 0.5000 |
| Length of Cut (mm) | 19.0500 |
| Length of Cut (Inch) | 3/4 |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.7500 |
| Connection Type | Duo-Lock 12 |
| Overall Length (Decimal Inch) | 1.7165 |
| Overall Length (mm) | 43.6000 |
| Material | Carbide |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Flute Type | Variable; Helical Flute |
| Helix Angle | 36 |
| Helix Style | Variable |
| Material Grade | Carbide |
| Maximum Helix Angle | 43 |
| Nose Radius (Decimal Inch) | 0.2500 |
| Series/List | Duo-Lock Harvi I TE |
| Undercutting | No |
| Number Of Flutes | 4 |
| Mill Diameter (Fractional Inch) | 1/2 |
| Finish Coating | AlTiN |
| UNSPSC Code | 27112803 |
| Country of Origin | Israel |
