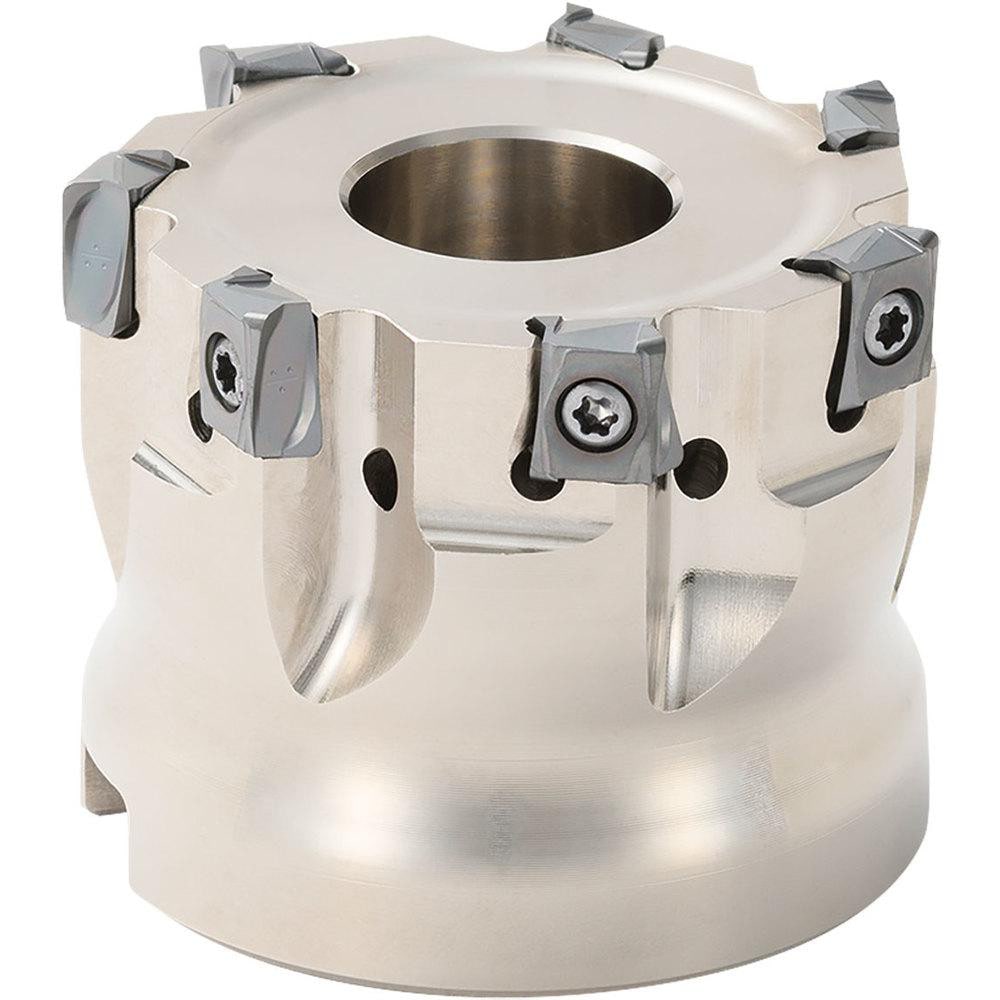

Indexable Square-Shoulder Face Mill: MA90100R12T13CM, 1.2598" Arbor Hole Dia, 0.4724" Max Cutting Depth
Item #: 68892124
Brand: Kyocera
Model #: THN08750
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 3.9370 |
| Minimum Cutting Diameter (mm) | 100.00 |
| Maximum Cutting Diameter (Decimal Inch) | 3.9370 |
| Maximum Cutting Diameter (mm) | 100.00 |
| Maximum Depth of Cut (mm) | 12.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.4724 |
| Arbor Hole Diameter (mm) | 32.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.2598 |
| Compatible Insert Size Code | 1206 |
| Cutter Style | Facing; Plunging; Ramping; Shouldering; Slotting; Helical Milling |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Lead Angle | 90 |
| Rake | Negative (Axial); Negative (Radial) |
| Series | MA90 |
| Keyway Width (mm) | 14.40 |
| Keyway Width (Decimal Inch) | 0.5669 |
| Hub Diameter (mm) | 32.000 |
| Hub Diameter (Decimal Inch) | 1.2598 |
| Maximum RPM | 9300.000 |
| Tool Application | Facing; Helical Interpolation; Plunging; Ramping; Shouldering; Slotting |
| Tool Performance | High Performance |
| Standards | GR99 |
| Counterbore Diameter (Decimal Inch) | 1.7717 |
| Complete Insert Compatibility | LOGU1206?-SM; LOGU1206?-GH; LOGU1206?-GM |
| UNSPSC Code | 23242106 |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | MA90100R12T13CM |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 13 |
| Number Of Flutes | 13 |
| Minimum Cutting Diameter (Decimal Inch) | 3.9370 |
| Minimum Cutting Diameter (mm) | 100.00 |
| Maximum Cutting Diameter (Decimal Inch) | 3.9370 |
| Maximum Cutting Diameter (mm) | 100.00 |
| Maximum Depth of Cut (mm) | 12.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.4724 |
| Arbor Hole Diameter (mm) | 32.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.2598 |
| Compatible Insert Size Code | 1206 |
| Cutter Style | Facing; Plunging; Ramping; Shouldering; Slotting; Helical Milling |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Lead Angle | 90 |
| Rake | Negative (Axial); Negative (Radial) |
| Series | MA90 |
| Keyway Width (mm) | 14.40 |
| Keyway Width (Decimal Inch) | 0.5669 |
| Hub Diameter (mm) | 32.000 |
| Hub Diameter (Decimal Inch) | 1.2598 |
| Maximum RPM | 9300.000 |
| Tool Application | Facing; Helical Interpolation; Plunging; Ramping; Shouldering; Slotting |
| Tool Performance | High Performance |
| Standards | GR99 |
| Counterbore Diameter (Decimal Inch) | 1.7717 |
| Complete Insert Compatibility | LOGU1206?-SM; LOGU1206?-GH; LOGU1206?-GM |
| UNSPSC Code | 23242106 |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | MA90100R12T13CM |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 13 |
| Number Of Flutes | 13 |
| MSC Part # | 68892124 |
| Mfr Part # | THN08750 |
| Country of Origin Country of Origin is subject to change | South Korea |
