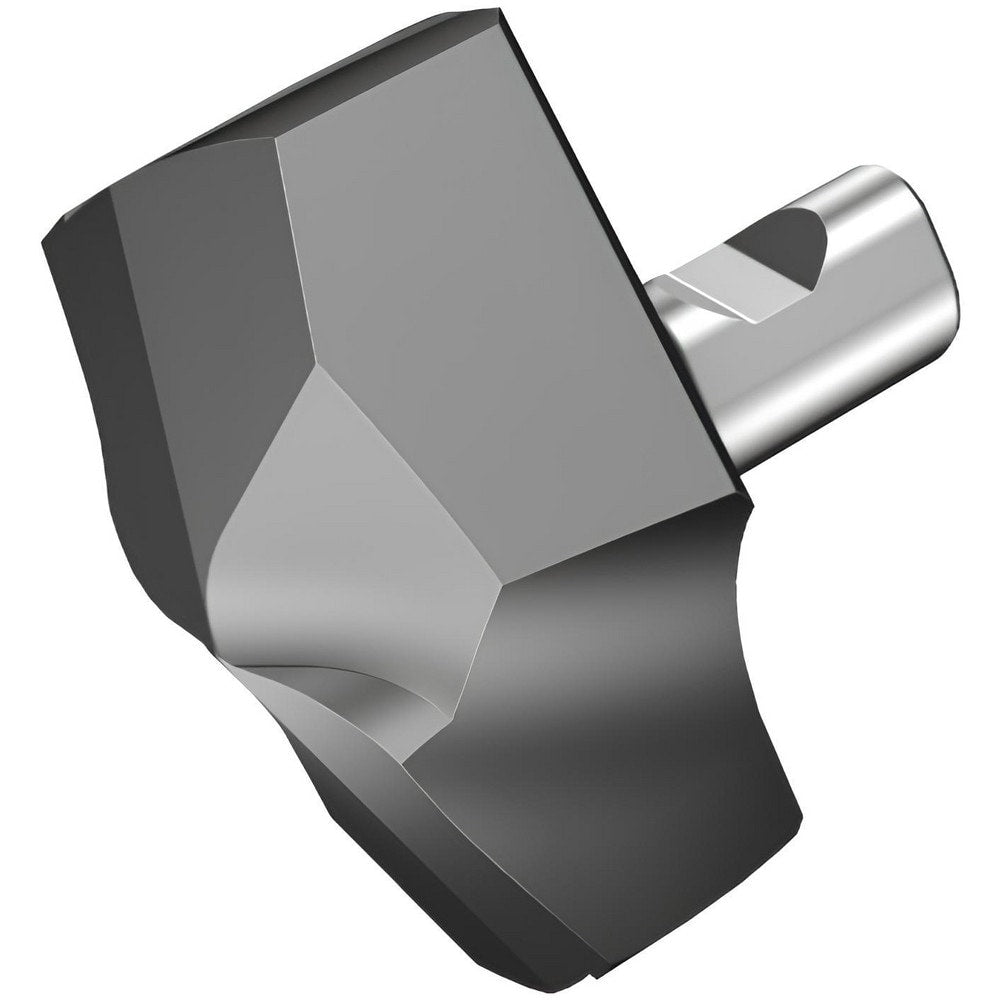

Replaceable Drill Tips: 870-2390-23-PM 4334, 0.9409" Dia, 23.90 mm Dia, 142 deg Point, 4334
Item #: 31696917
Brand: Sandvik Coromant
Model #: 7358156
Product Specifications
| Cutting Diameter (Decimal Inch) | 0.9409 |
| Cutting Diameter (mm) | 23.90 |
| Tip Material | Solid Carbide |
| Manufacturer Grade | 4334 |
| Material Grade | Fine Grain |
| Series | CoroDrill 870 |
| Coating Process | PVD |
| Insert Geometry | PM |
| Insert Seat Size | 23 |
| Functional Length (Decimal Inch) | 0.4287 |
| Primary Workpiece Material | Non-Ferrous Metal; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K; M; N |
| Height (mm) | 14.00 |
| Overall Length/Projection (Decimal Inch) | 0.5708 |
| Drill Point Angle | 142 |
| Flute Type | Helical |
| Insert Holding Method | Clamp |
| ISO Number | 870-2390-23-PM 4334 |
| Coolant Through | No |
| Flute Length (mm) | 11.00 |
| Point Type | Standard |
| Spiral Type | Regular Spiral |
| Style | CoroDrill 870 |
| UNSPSC Code | 23242105 |
| Applications | SolidDrilling |
| Coating/Finish | TiAlN |
| Included Angle Degree | 142 |
| Number Of Flutes | 2 |
