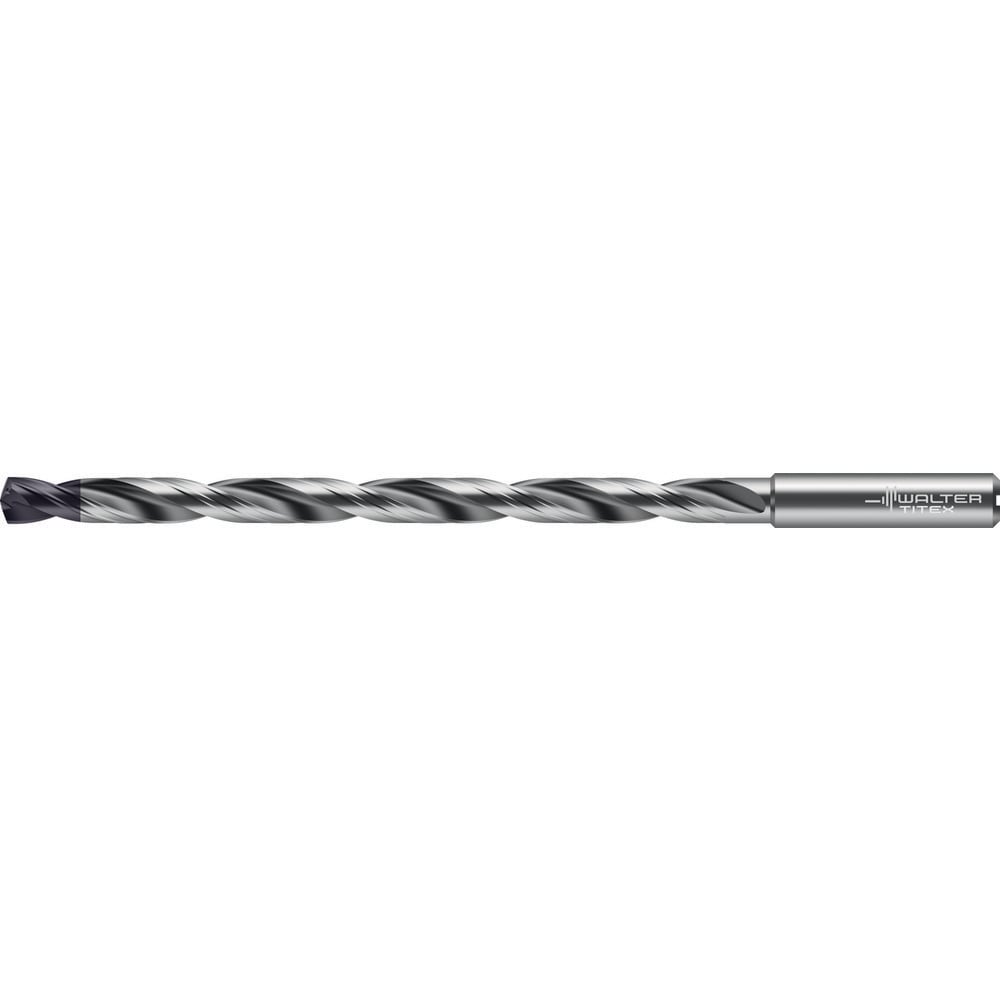

Extra Length Drill Bit: 0.7874", 140 °, Carbide
Item #: 82372665
Brand: Walter-Titex
Model #: 8325384
Product Specifications
| Drill Bit Size (mm) | 20.00 |
| Overall Length (mm) | 310.0000 |
| Tool Material | Carbide |
| Coating/Finish | TiSiAlCrN/AlTiN |
| Coolant Through | Yes |
| Flute Type | Spiral |
| Shank Type | Cylindrical |
| Drill Point Angle | 140 |
| Flute Length (mm) | 258.00 |
| Point Type | Standard |
| Series | DC180 |
| Cutting Direction | Right Hand |
| Spiral Type | Regular Spiral |
| Drill Bit Diameter Tolerance | m7 |
| Number Of Flutes | 2 |
| Drill Bit Size (Decimal Inch) | 0.7874 |
| Drill Point Length (mm) | 3.64 |
| Drill Point Length (Decimal Inch) | 0.1433 |
| Overall Length (Decimal Inch) | 12.2047 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Shank Diameter (mm) | 20.0000 |
| Shank Length (Decimal Inch) | 1.9685 |
| Shank Length (mm) | 50.000 |
| Flute Length (Decimal Inch) | 10.1575 |
| Flute By Diameter Ratio | 12xD |
| Maximum Drilling Depth (Decimal Inch) | 9.3701 |
| Maximum Drilling Depth (mm) | 238.00 |
| UNSPSC Code | 23241605 |
| Country of Origin | France |
