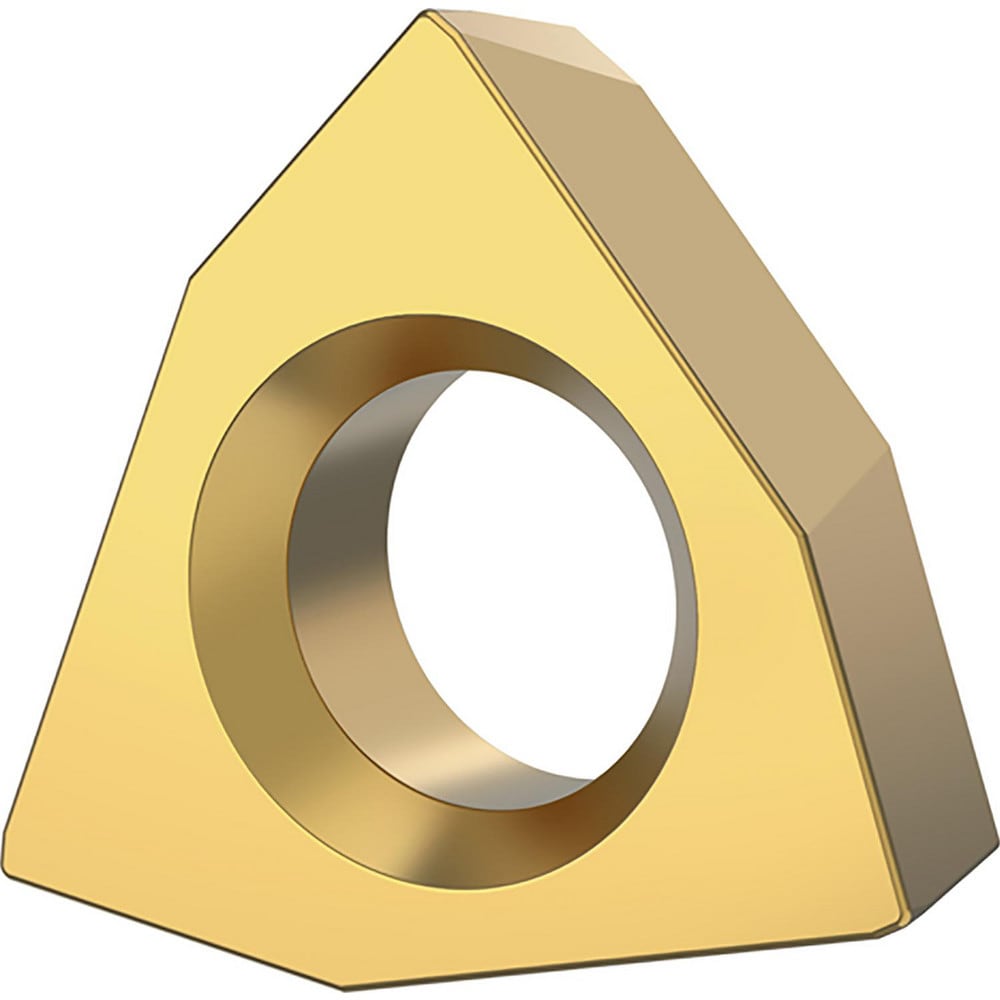

Turning Insert: WBGX020101 KCU10, Carbide
Item #: 26178020
Brand: Kennametal
Model #: 6826761
Product Specifications
| ANSI Insert Code | WBGX020101 |
| ISO Insert Code | WBGX020101 |
| Relief Angle | 5 |
| Insert Style | WBGX |
| Corner Radius (Decimal Inch) | 0.0039 |
| Included Angle | 80 |
| Manufacturer Grade | KCU10 |
| Coating/Finish | TiAlN |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/16 |
| Insert Thickness (Decimal Inch) | 0.0625 |
| Series | eBore |
| Inscribed Circle (Decimal Inch) | 0.1563 |
| Inscribed Circle (Inch) | 5/32 |
| Insert Material | Carbide |
| Insert Shape | W - Trigon 80-Deg |
| Chip Breaker Operation | Flat Top |
| Grade Characteristics | Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Hardened Materials (H) - High Wear-Resistance; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance | Positive |
| Number Of Cutting Edges | 3 |
| Insert Shape Code | W |
| Hole Diameter (Decimal Inch) | 0.0906 |
| Maximum Depth of Cut (Decimal Inch) | 0.0903 |
| Insert Holding Method | Screw |
| Clearance Code | B |
| Tolerance Code | G |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.0000 - 0.3000 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.2712 |
| Primary Workpiece Material | Stainless Steel; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Iso Code | WBGX020101 |
| Standards | ISO; ANSI |
| Manufacturers Catalog Number | 6826761 |
| Material Grade | C3; C4 |
| Coating Classification | PVD |
| Chip Breaker | Flat Top |
| Rake Angle | 0 |
| Cutting Edge Style | Honed |
| Width (Decimal Inch - 4 Decimals) | 0.2712 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | Facing; Turning; Boring |
| ANSI Size Code | 020101 |
| ISO Size Code | 020101 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 020101 |
