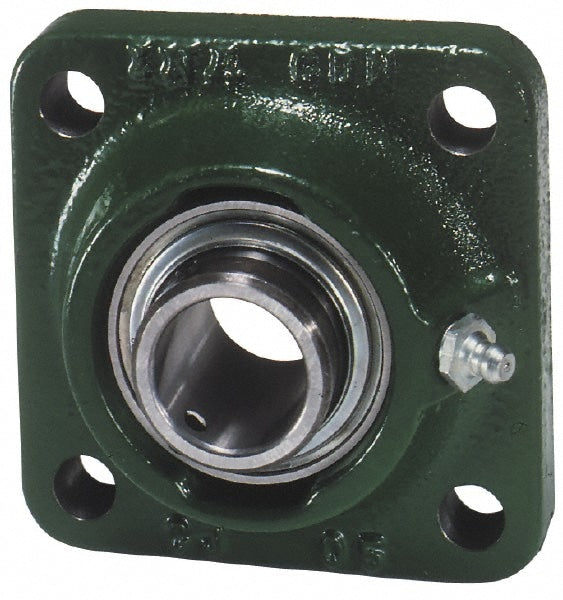

30mm ID, 4.2717" OAL x 1.6142" OAH 4-Bolt Set Screw Econ Seal Met
Item #: 57131674
Brand: INA Bearing
Model #: PCJY30
Product Specifications
| Type | 4Bolt Set Scrw Econ Seal Met |
| Inside Diameter (mm) | 30.0000 |
| Inside Diameter (Decimal Inch) | 1.1811 |
| Overall Length (Decimal Inch) | 4.2717 |
| Overall Height (Decimal Inch) | 1.6142 |
| Static Load Capacity | 2550.0 |
| Dynamic Load Capacity (Lb.) | 4350 |
| Distance Between Base And Center (mm) | 108.5000 |
| Distance Between Base And Center (Decimal Inch) | 4.2720 |
| UNSPSC Code | 31171500 |
| Shipping Weight (kg) | 1.300 |
| Flange Thickness (Decimal Inch) | 0.5118 |
| Type | 4Bolt Set Scrw Econ Seal Met |
| Inside Diameter (mm) | 30.0000 |
| Inside Diameter (Decimal Inch) | 1.1811 |
| Overall Length (Decimal Inch) | 4.2717 |
| Overall Height (Decimal Inch) | 1.6142 |
| Static Load Capacity | 2550.0 |
| Dynamic Load Capacity (Lb.) | 4350 |
| Distance Between Base And Center (mm) | 108.5000 |
| Distance Between Base And Center (Decimal Inch) | 4.2720 |
| UNSPSC Code | 31171500 |
| Shipping Weight (kg) | 1.300 |
| Flange Thickness (Decimal Inch) | 0.5118 |
| MSC Part # | 57131674 |
| Mfr Part # | PCJY30 |
| Country of Origin Country of Origin is subject to change | Vietnam |
