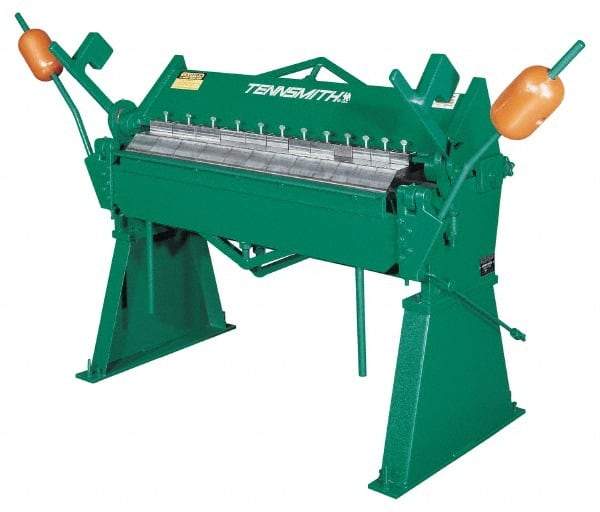

Tennsmith - 48 Inch Bending Length, Floor Machine Box and Pan Brake - 72 Inch Wide, 49 Inch Deep, 56 Inch High
Item #: 86512811
Brand: Tennsmith
Model #: F6-48-12
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Machine Type | Floor |
| Bending Length (mm) | 1219.20 |
| Bending Length (Inch) | 48 |
| Maximum Mild Steel Capacity (mm) | 2.00 |
| Maximum Mild Steel Capacity (Gauge) | 12 |
| Maximum Stainless Steel Capacity (mm) | 1.60 |
| Maximum Stainless Steel Capacity (Gauge) | 16 |
| Maximum Depth of Box (mm) | 152.40 |
| Maximum Depth of Box (Inch) | 6 |
| Press Brake Style | Box & Pan Brake |
| Finger Width (mm) | 4 at 76.3; 4 at 101.6; 4 at 127 |
| Finger Width (Inch) | 3"; 4"; 5" |
| Maximum Beam Lift (mm) | 38.10 |
| Maximum Beam Lift (Inch) | 1-1/2 |
| Overall Width (mm) | 1828.80 |
| Overall Width (Inch) | 72 |
| Overall Depth (mm) | 1244.60 |
| Overall Depth (Inch) | 49 |
| Overall Height (mm) | 1422.40 |
| Overall Height (Inch) | 56 |
