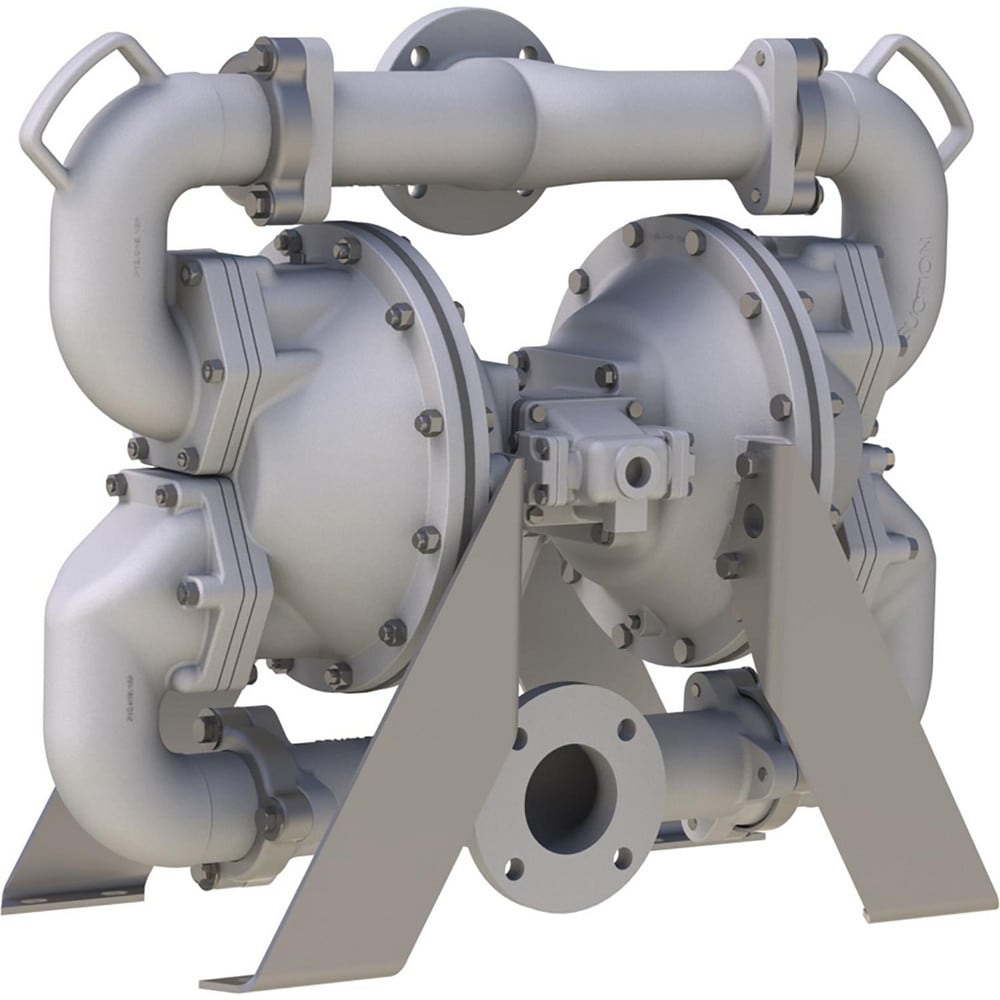

Air-Operated Diaphragm Pumps; Maximum Flow Rate (Gpm
Item #: 02364743
Brand: SandPIPER
Model #: HDF3,DS7.
Product Specifications
| Maximum Flow Rate (Gpm - 2 Decimals) | 310.00 |
| Maximum Working Pressure | 125.000 |
| Thread Type | Flange |
| Inlet Size | 3 in |
| Cubic Feet Per Minute | 160 SCFM |
| Diaphragm Material | Santoprene |
| Ball Material | Santoprene |
| Check Seat Material | Stainless Steel |
| Height (Inch) | 29.5 |
| Width (Inch) | 36.72 |
| Length (Inch) | 16.18 |
| Port Type | ANSI Flange |
| Body Material | Aluminum |
| Maximum Temperature (F) ( - 0 Decimals) | 275.000 |
| Maximum Solid Size (Inch) | 3 |
| Air Inlet Size (Inch) | 3/4 |
| Maximum Cubic Feet Per Minute (CFM) | 160.00 |
| UNSPSC Code | 40151548 |
