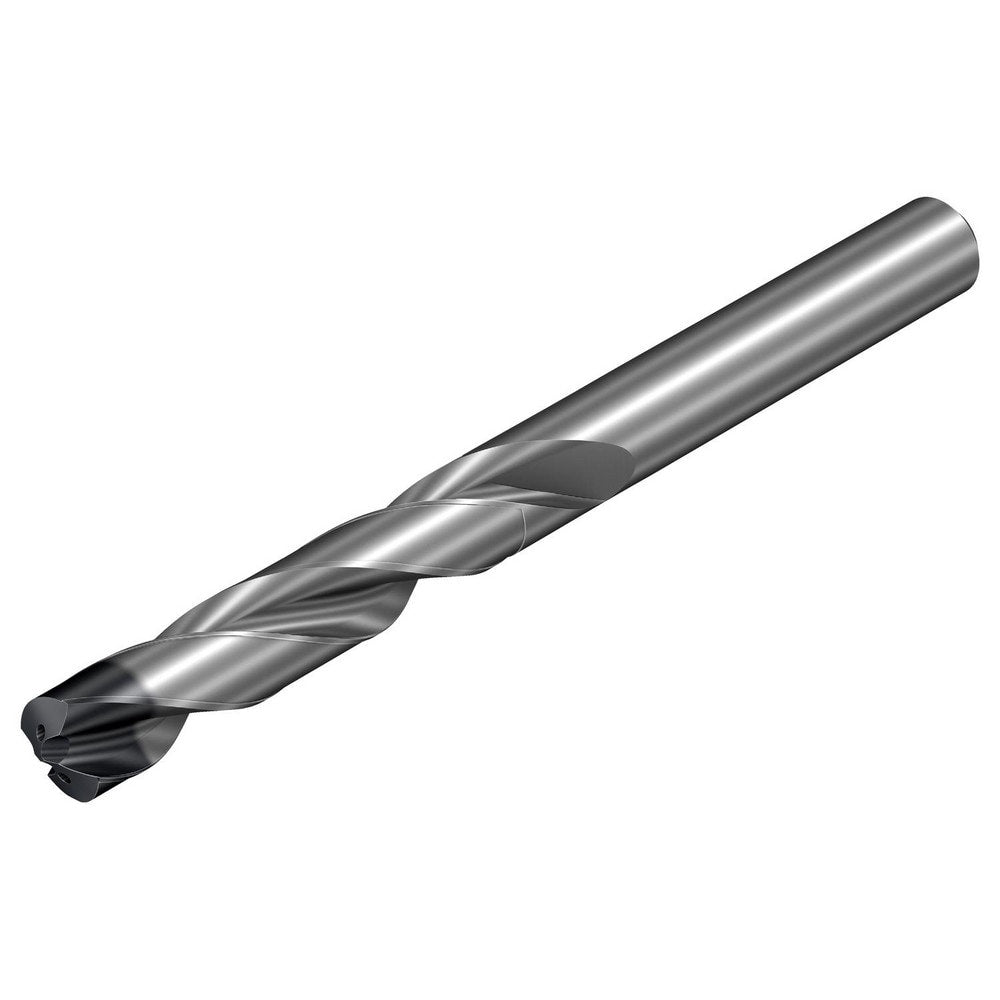

Jobber Drill: 16.00 mm Dia, 140 deg Point, Solid Carbide
Item #: 77419661
Brand: Sandvik Coromant
Model #: 8421178
Product Specifications
| Drill Bit Size (mm) | 16.00 |
| Drill Bit Size (Decimal Inch) | 0.6299 |
| Drill Bit Material | Solid Carbide |
| Drill Point Angle (Degrees) | 140 |
| Coating/Finish | TiAlSiN |
| Flute Type | Regular Spiral |
| Cutting Direction | Right Hand |
| Point Type | Split Point |
| Primary Workpiece Material | High-Temp Alloy |
| Coolant Through | Yes |
| Number of Flutes | 2 |
| Primary Workpiece Material Code | S |
| Shank Diameter (Decimal Inch) | 0.6299 |
| Overall Length (mm) | 133.00 |
| Overall Length (Decimal Inch) | 5.2362 |
| Flute Length (mm) | 83.00 |
| Flute Length (Decimal Inch) | 3.2677 |
| Series | 860.1 |
| Tool Application | Drilling |
| Flute By Diameter Ratio | 4xD |
| Shank Diameter (mm) | 16 |
| Maximum Drilling Depth (Decimal Inch) | 2.4410 |
| Maximum Drilling Depth (mm) | 62.00 |
| Drill Point Length (mm) | 2.91 |
| Drill Point Length (Decimal Inch) | 0.1146 |
| Shank Type | Straight |
| Tool Performance | High Performance |
| Drill Bit Grade | S2BM |
| Specification Designation | DIN |
| UNSPSC Code | 23291500 |
| Country of Origin | China |
