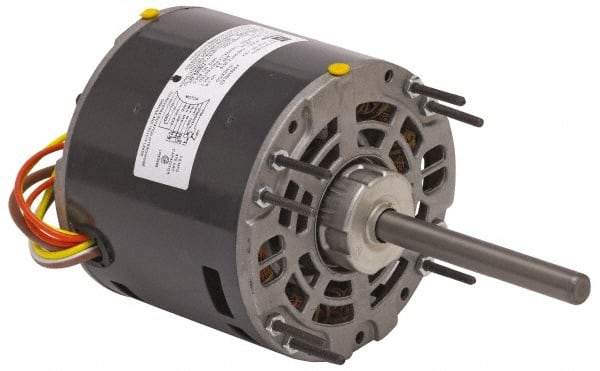

US Motors - 1/5 hp, ODP Enclosure, Auto Thermal Protection, 1,075 RPM, 208-230 Volt, 60 Hz, Industrial Electric AC/DC Motor - Size 48 Frame, Hub/Stud Mount, 1 Speed, Ball Bearings, 2.0 Full Load Amps, A Class Insulation, CW Lead End
Item #: 86355153
Brand: US Motors
Model #: 1648
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type of Enclosure | ODP |
| Horsepower | 1/5 |
| Thermal Protection Rating | Auto |
| Name Plate RPMs | 1075 |
| Voltage | 208-230 |
| Frequency Hz | 60 |
| Frame Size | 48 |
| Mount Type | Hub/Stud |
| Number of Speeds | 1 |
| Bearing Type | Ball |
| Full Load Amperage | 2.0 |
| Insulation Class | A |
| Full Load Efficiency Rating | 55.40 |
| Motor Run Capacitor Micro Farid | 4.00 |
| Motor Run Capacitor Volts | 0 |
| Service Factor Rating | 0.00 |
| Motor Rotation | CW Lead End |
| PSC Code | 6105 |
