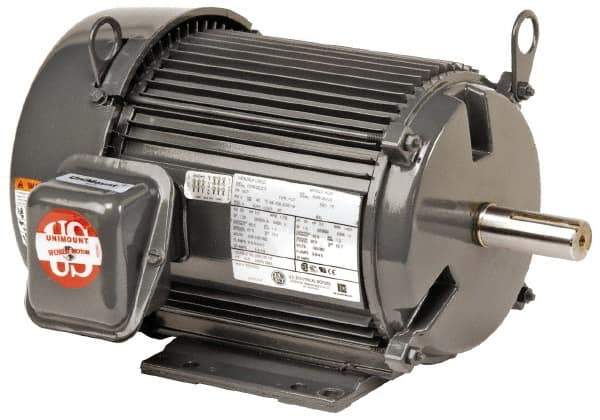

US Motors - 7-1/2 hp, TEFC Enclosure, No Thermal Protection, 1,765 RPM, 575 Volt, 60 Hz, Three Phase Premium Efficient Motor - Size 213 Frame, Rigid Mount, 1 Speed, Ball Bearings, 7.2 Full Load Amps, F Class Insulation, Reversible
Item #: 86351624
Brand: US Motors
Model #: U7P2G
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Motor Type | Three Phase Premium Efficient |
| Type of Enclosure | TEFC |
| Horsepower | 7-1/2 |
| Thermal Protection Rating | None |
| Name Plate RPMs | 1765 |
| Voltage | 575 |
| Frequency Hz | 60 |
| Frame Size | 213 |
| Mount Type | Rigid |
| Number of Speeds | 1 |
| Bearing Type | Ball |
| Applications | General Purpose |
| Full Load Amperage | 7.2 |
| Insulation Class | F |
| Frame Material | Aluminum |
| Overall Length (Decimal Inch) | 18.6300 |
| Full Load Efficiency Rating | 91.7 |
| Service Factor Rating | 1.25 |
| Motor Rotation | Reversible |
| PSC Code | 6105 |
