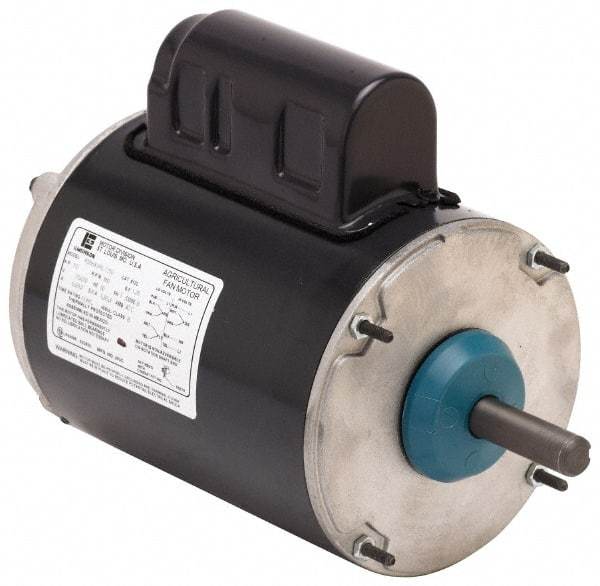

US Motors - 1/2 hp, TEAO Enclosure, Auto Thermal Protection, 850 RPM, 115/230 Volt, 60 Hz, Industrial Electric AC/DC Motor - Size 48 Frame, Stud Mount, 1 Speed, Ball Bearings, 6.0/3.0 Full Load Amps, B Class Insulation, CCW Lead End
Item #: 86224722
Brand: US Motors
Model #: 8102
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type of Enclosure | TEAO |
| Horsepower | 1/2 |
| Thermal Protection Rating | Auto |
| Name Plate RPMs | 850 |
| Voltage | 115/230 |
| Frequency Hz | 60 |
| Frame Size | 48 |
| Mount Type | Stud |
| Number of Speeds | 1 |
| Bearing Type | Ball |
| Full Load Amperage | 6.0/3.0 |
| Insulation Class | B |
| Full Load Efficiency Rating | 71.90 |
| Motor Run Capacitor Micro Farid | 30.00 |
| Motor Run Capacitor Volts | 0 |
| Service Factor Rating | 1.25 |
| Motor Rotation | CCW Lead End |
| PSC Code | 6105 |
