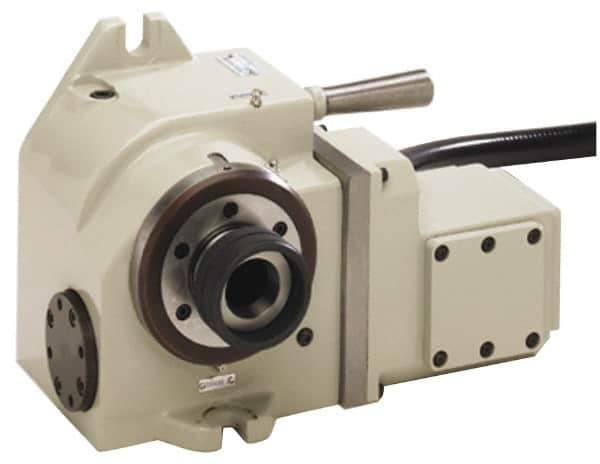

Yuasa - 4 Spindle, 66.6 Max RPM, 1.35 hp, Horizontal & Vertical CNC Collet Rotary Indexer - 7 kg (15 Lb) Max Horiz Load, 150.11mm Centerline Height
Item #: 86205226
Brand: Yuasa
Model #: DMNC-5CA-4
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Indexer Type | Collet Indexer |
| Number of Spindles | 4 |
| Collet Compatibility | 5C |
| Maximum RPM | 66.6 |
| Setting Position | Horizontal; Vertical |
| Maximum Horizontal Load Capacity (Lb.) | 15 |
| Maximum Horizontal Load Capacity (kg) | 7 |
| Maximum Vertical Load Capacity (Lb.) | 15 |
| Maximum Vertical Load Capacity (kg) | 7 |
| Centerline Height (mm) | 150.11 |
| Centerline Height (Decimal Inch) | 5.9100 |
| Through Hole Size (mm) | 28.30 |
| Through Hole Size (Decimal Inch) | 1.1140 |
| Table Torque (Ft/Lb) | 54.00 |
| Table Torque (kg-m) | 7.47 |
| Resolution (Decimal Inch) | 0.0010 |
| Positioning Accuracy (sec.) | 20.00 |
| Motor Type | AC Servo |
| Voltage | 105 to 240 |
| Horsepower (HP) | 1.35 |
| For Use With | CNC 4-Axis Rotary Table |
| Includes | 5C Air Collet Closer; Home Limit Switch |
