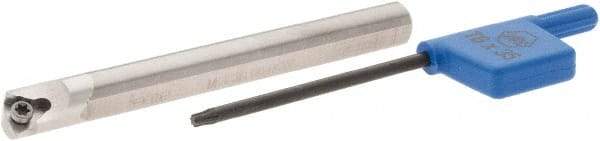

Iscar - 7mm Min Bore Diam, 59mm OAL, 6mm Shank Diam, MGSI Indexable Boring Bar - 06IR Insert, Screw Holding Method
Item #: 86038049
Brand: Iscar
Model #: 2800935
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | MGSI |
| Series | IscarThread; Isoturn |
| Minimum Bore Diameter (mm) | 7.00 |
| Minimum Bore Diameter (Decimal Inch) | 0.2756 |
| Hand of Holder | Right Hand |
| Overall Length (mm) | 59.00 |
| Overall Length (Decimal Inch) | 2.3228 |
| Shank Diameter (mm) | 6.00 |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Insert Compatibility | 06IR |
| Through Coolant | Yes |
| Multi-Use Tool | Yes |
| Multi-Use Application | Threading |
| Insert Holding Method | Screw |
| Center to Cutting Edge (mm) | 3.90 |
| Center to Cutting Edge (Decimal Inch) | 0.1535 |
| Complete Insert Compatibility | 06IR 0.50 ISO; 06IR 0.75 ISO; 06IR 1.00 ISO; 06IR 1.25 ISO; 06IR 27 NPT; 06IR 28 BSPT; 06IR A 55; 06IR A 60; 06IRM A 60 |
| Toolholder Material | Carbide |
