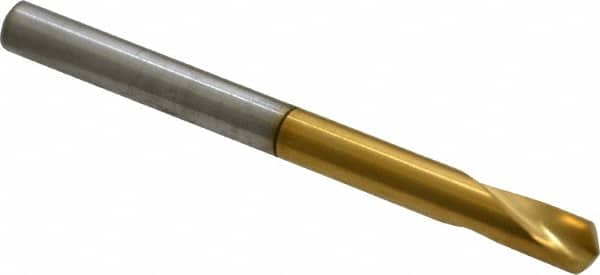

120° 5mm Diam 62mm OAL High Speed Steel Spotting Drill TiN Finish, 14mm Flute Length, 5mm Shank Diam, RH Cut, Series 567
Item #: 85992097
Brand: Guhring
Model #: 9005670050000
Product Specifications
| Drill Point Angle | 120 |
| Cutting Diameter (mm) | 5.00 |
| Cutting Diameter (Decimal Inch) | 0.1969 |
| Overall Length (mm) | 62.00 |
| Tool Material | High Speed Steel |
| Coating/Finish | TiN |
| Single/Double Ended | Single |
| Series | 567 |
| Overall Length (Decimal Inch) | 2.4409 |
| Flute Length (Decimal Inch) | 0.5512 |
| Flute Length (mm) | 14.00 |
| Shank Diameter (Decimal Inch) | 0.1969 |
| Shank Diameter (mm) | 5.00 |
| Flute Type | Spiral |
| Number of Flutes | 2 |
| Shank Type | Straight-Cylindrical |
| Tool Performance | General Purpose |
| Tool Application | Spotting |
| Cutting Direction | Right Hand |
