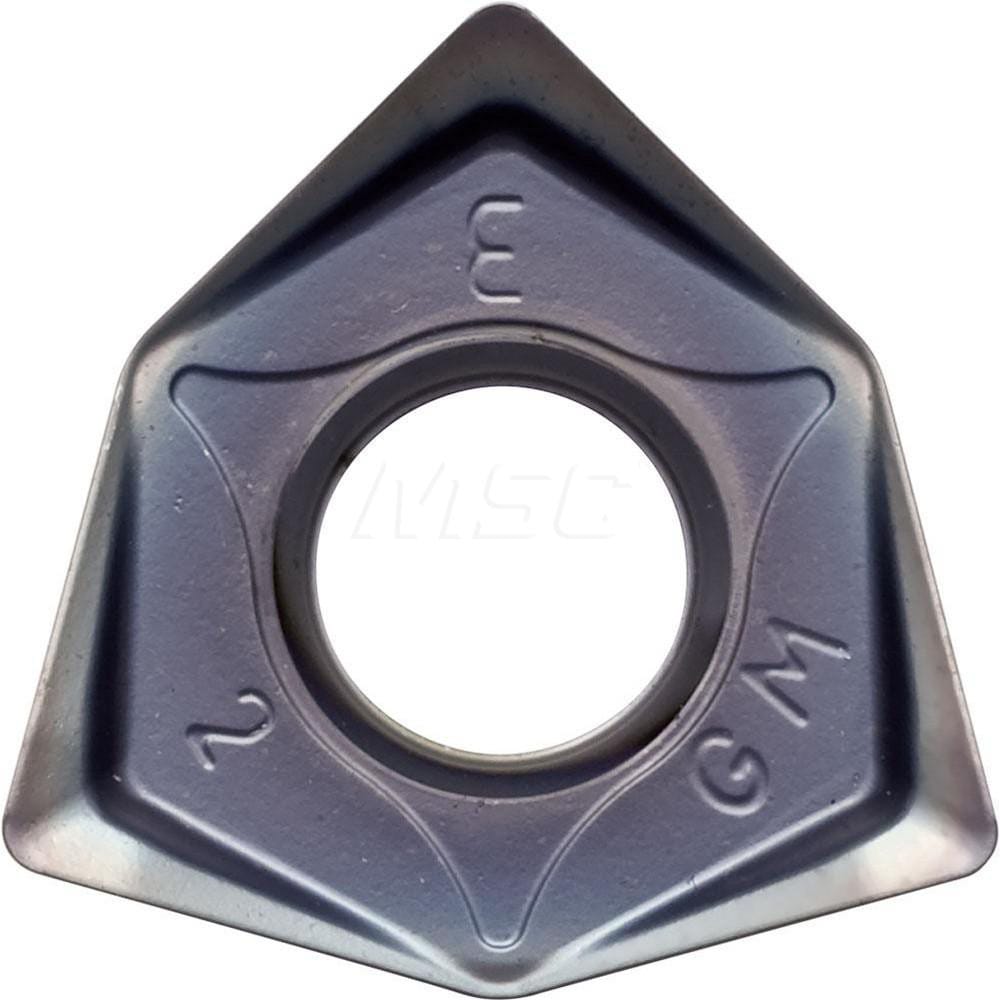

Milling Insert: WNMU080608EN-GM PR1525, Solid Carbide
Item #: 45007614
Brand: Kyocera
Model #: TLB09310
Product Specifications
| Insert Style | WNMU |
| Insert Size | 08 |
| Insert Material | Solid Carbide |
| Insert Shape | Trigon |
| Manufacturer Grade | PR1525 |
| Corner Radius (Decimal Inch) | 0.0312 |
| Number Of Cutting Edges | 6 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2620 |
| Coating/Finish | MEGACOAT NANO |
| Relief Angle | 0.00 |
| Insert Size Code | 080608 |
| Inscribed Circle (Decimal Inch) | 0.5520 |
| Thickness Range (Decimal Inch) | 0.2500 to 0.3500 |
| Corner Radius (Inch) | 1/32 |
| Inscribed Circle Range (Decimal Inch) | 0.5100 to 0.6000 |
| Length Range (Decimal Inch) | 0.5000 to 0.6000 |
| Insert Hand | Neutral |
| Maximum Depth of Cut (Decimal Inch) | 0.5208 |
| Series | MFWN |
| Coating Process | PVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 0.24 |
| Hole Diameter (Decimal Inch) | 0.2441 |
| Rake | Negative |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Stainless Steel |
| Secondary Workpiece Material Code | M |
| Ansi Code | WNMU080608ENGMPR1525 |
| Iso Code | WNMU080608EN-GM |
| Standards | ISO; ANSI |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | WNMU080608ENGM |
| Cutter Series Compatibility | MFWN |
| Chip Breaker | EN-GM |
| UNSPSC Code | 23291601 |
| Material Application | Stainless Steel; Steel |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Double |
| Included Angle Degree | 80 |
| Width (Decimal Inch - 4 Decimals) | 0.5520 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.5520 |
