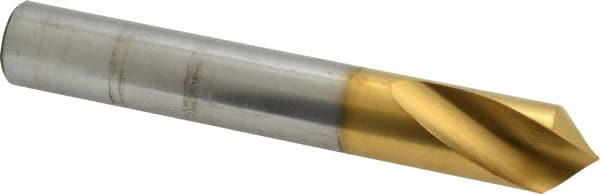

90° 131mm OAL High Speed Steel Spotting Drill TiN Finish, 45mm Flute Length, 19.05mm Shank Diam, RH Cut, Series 568
Item #: 85785483
Brand: Guhring
Model #: 9005680190500
Product Specifications
| Drill Point Angle | 90 |
| Cutting Diameter (Inch) | 3/4 |
| Cutting Diameter (Decimal Inch) | 0.7500 |
| Overall Length (mm) | 131.00 |
| Tool Material | High Speed Steel |
| Coating/Finish | TiN |
| Single/Double Ended | Single |
| Series | 568 |
| Overall Length (Decimal Inch) | 5.1575 |
| Flute Length (Decimal Inch) | 1.7717 |
| Flute Length (mm) | 45.00 |
| Shank Diameter (Inch) | 3/4 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Shank Diameter (mm) | 19.05 |
| Flute Type | Spiral |
| Number of Flutes | 2 |
| Shank Type | Straight-Cylindrical |
| Tool Performance | General Purpose |
| Tool Application | Spotting |
| Cutting Direction | Right Hand |
