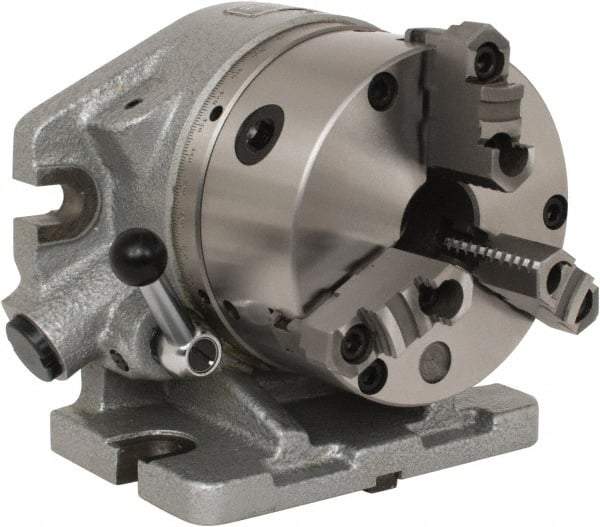

Phase II - 24 Position, 6" Chuck, Super Indexing Spacer - 5-1/8" High Centerline, 1.73" Chuck Through Hole
Item #: 85784973
Brand: Phase II
Model #: 225-006
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Spacer Type | Super Spacer |
| Includes Chuck | Yes |
| Chuck Diameter (Inch) | 6 |
| Number of Indexing Increments | 24 |
| Centerline Height (Decimal Inch) | 5.1250 |
| Chuck Through Hole Size (Decimal Inch) | 1.7300 |
| Masking Plate Divisions | 2; 3; 4; 6; 8; 12 |
| Indexing Accuracy (sec.) | 25.00 |
| Squareness - Base to Chuck (Decimal Inch) | 0.0008 |
| Concentricity of Chuck (Decimal Inch) | 0.0005 |
| Parallelism Over Face (Decimal Inch) | 0.0004 |
