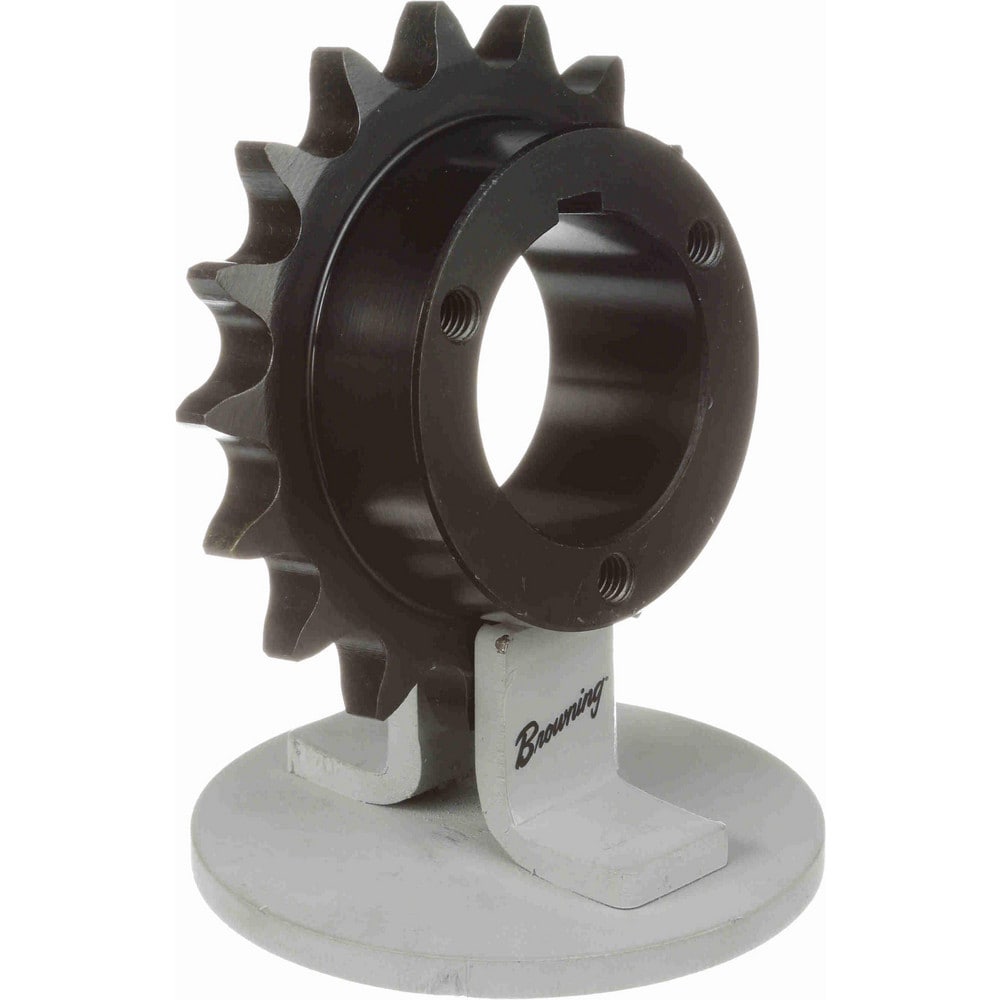

Bushed Roller Chain Sprocket: 17 Teeth, 3/4" Pitch, 1-3/4" Bore Dia, 3" Hub Dia
Item #: 84368703
Brand: Browning
Model #: 1177898
Product Specifications
| Sprocket Type | Bushed Roller Chain |
| Chain Pitch (Decimal Inch) | 0.7500 |
| Chain Pitch (Inch) | 3/4 |
| Iso Number | 12B-1 |
| Hub Diameter (Decimal Inch) | 3.00000 |
| Chain Trade Size | 60 |
| Outside Diameter (Decimal Inch - 4 Decimals) | 4.4600 |
| Material | Steel |
| Bushing Series | P1 |
| Maximum Bore Diameter (Inch) | 1-3/4 |
| Minimum Bore Diameter (Inch) | 1/2 |
| Minimum Bore Diameter (Decimal Inch) | 1.7500 |
| Thickness (Decimal Inch - 4 Decimals) | 0.4590 |
| Number Of Teeth | 17 |
| Product Service Code | 3020 |
| UNSPSC Code | 31171900 |
| Country of Origin | China |
