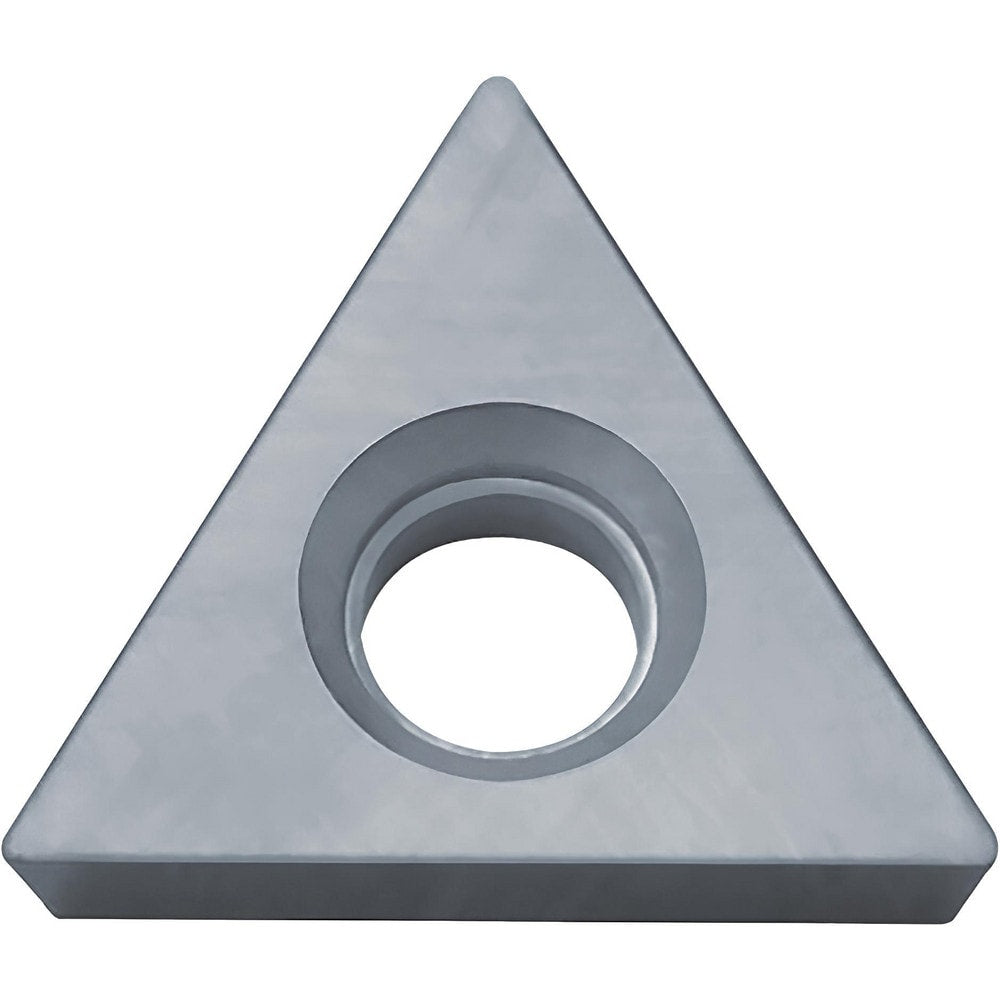

Turning Insert: TPGB151505TN60 TN60, Cermet
Item #: 28467421
Brand: Kyocera
Model #: TSJ02220
Product Specifications
| ANSI Insert Code | TPGB151505 |
| ISO Insert Code | TPGB080202 |
| Relief Angle | 11 |
| Insert Style | TPGB |
| Corner Radius (Inch) | 1/128 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Included Angle | 60 |
| Manufacturer Grade | TN60 |
| Coating/Finish | TiCN; NbC |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 3/32 |
| Insert Thickness (Decimal Inch) | 0.0938 |
| Series | ISOI |
| Inscribed Circle (Decimal Inch) | 0.1875 |
| Inscribed Circle (Inch) | 3/16 |
| Insert Material | Cermet |
| Insert Shape | T - Triangle |
| Chip Breaker Operation | Flat Top |
| Grade Characteristics | Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) - High Wear-Resistance; Stainless Steel (M) - High Wear-Resistance |
| Side Clearance | Positive |
| Number Of Cutting Edges | 3 |
| Insert Shape Code | T |
| Hole Diameter (Decimal Inch) | 0.0906 |
| Maximum Depth of Cut (Decimal Inch) | 0.1051 |
| Insert Holding Method | Screw |
| Clearance Code | P |
| Tolerance Code | G |
| Coating Process | Uncoated |
| Length Range (Decimal Inch) | 0.3000 - 0.4000 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.3152 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P; K; M |
| Iso Code | TPGB080202 |
| Manufacturers Catalog Number | TSJ02220 |
| Material Grade | P01; P10; P20 |
| Coating Classification | Uncoated |
| Chip Breaker | Flat Top |
| Industry Standard Number | TPGB151505TN60 |
| Width (Decimal Inch - 4 Decimals) | 0.3152 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | External Turning; Back Boring; Copying; Internal Facing; Boring |
| ANSI Size Code | 151505 |
| ISO Size Code | 080202 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 151505 |
