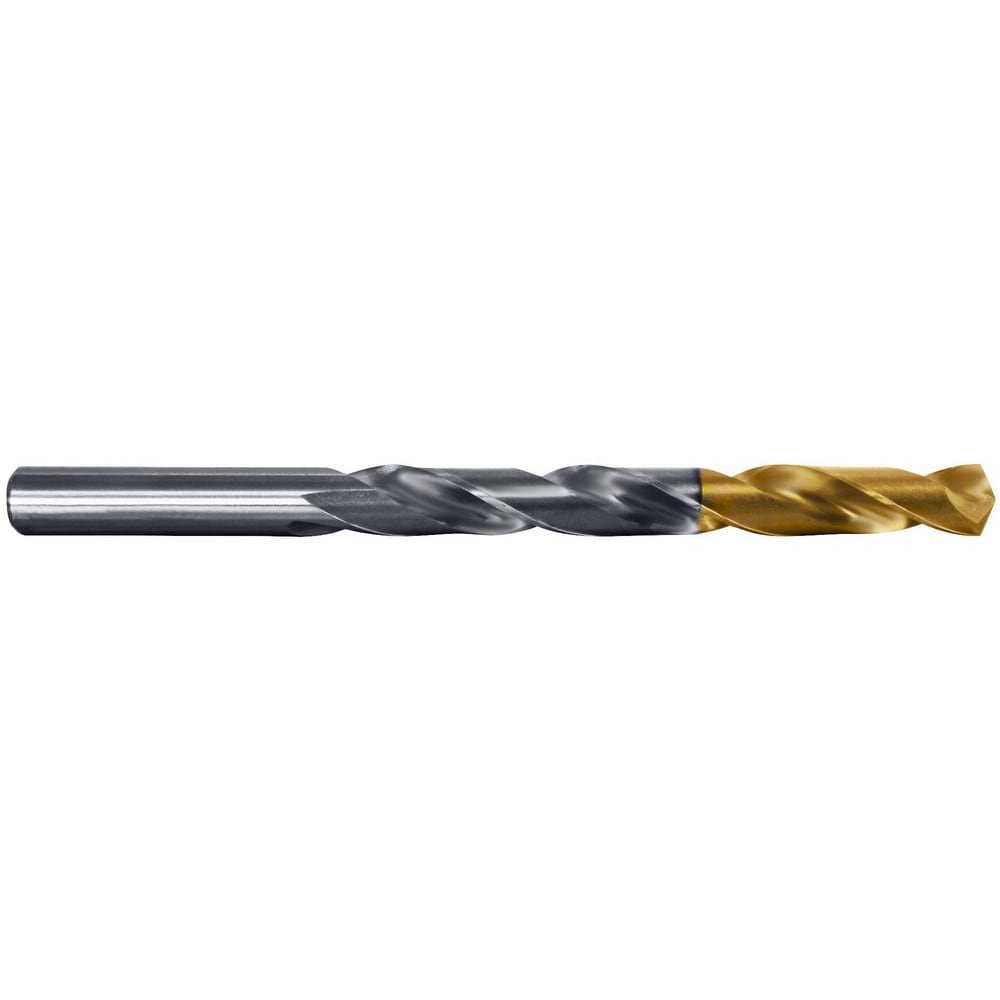

Jobber Drill: Letter S, 135 deg Point, Cobalt
Item #: 80161052
Brand: Cle-Line
Model #: C66047
Product Specifications
| Drill Bit Size (Letter) | S |
| Drill Bit Size (Decimal Inch) | 0.3480 |
| Drill Bit Material | Cobalt |
| Drill Point Angle (Degrees) | 135 |
| Coating/Finish | TiN |
| Flute Type | Regular Spiral |
| Cutting Direction | Right Hand |
| Point Type | Split Point |
| Primary Workpiece Material | Aluminum & Non-Ferrous; High-Temp Alloy; Cast Iron; CFRP Materials |
| Coolant Through | No |
| Number of Flutes | 2 |
| Flute Length (Inch) | 3-1/2 |
| Primary Workpiece Material Code | P; K; N |
| Shank Diameter (Decimal Inch) | 0.3480 |
| Overall Length (mm) | 123.83 |
| Overall Length (Inch) | 4-7/8 |
| Overall Length (Decimal Inch) | 4.8750 |
| Flute Length (mm) | 88.90 |
| Flute Length (Decimal Inch) | 3.5000 |
| Series | 1501-TT |
| Tool Application | Drilling |
| Shank Diameter (mm) | 8.84 |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Shank Type | Straight |
| Tool Performance | General Purpose |
| Double Margin | No |
| Specification Designation | ANSI |
| UNSPSC Code | 20111614 |
| Country of Origin | VARIOUS |
