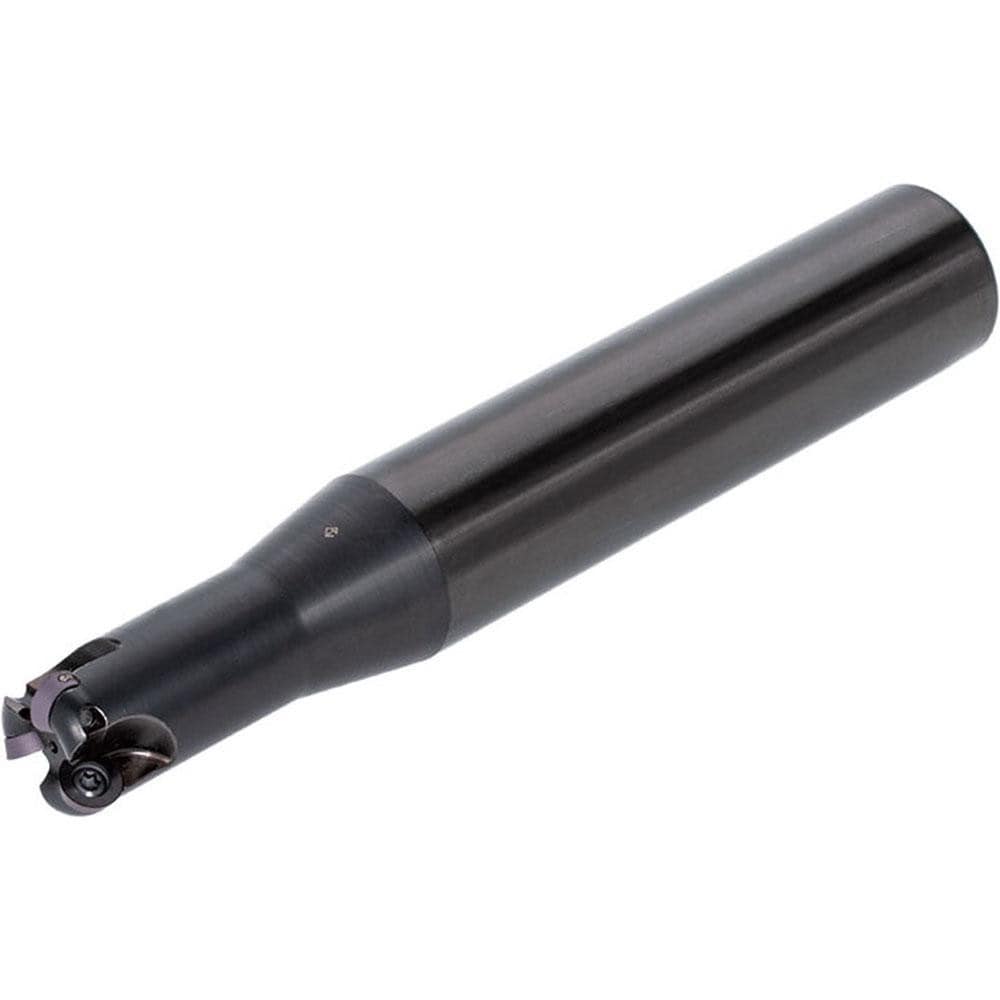

Indexable Copy End Mills; Cutting Diameter (mm): 8.00; Minimum Cutting Diameter (mm): 8.00; Maximum Cutting Diameter (mm): 15.00
Item #: 63161517
Brand: Tungaloy
Model #: 6817718
Product Specifications
| Cutting Diameter (mm) | 8.00 |
| Minimum Cutting Diameter (mm) | 8.00 |
| Maximum Cutting Diameter (mm) | 15.00 |
| Maximum Depth of Cut (mm) | 3.50 |
| Toolholder Style | EWD |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 20.0000 |
| Maximum Ramping Angle | 25.0 |
| Compatible Insert Style | RDMW |
| Insert Holding Method | Screw |
| Compatible Insert Size Code | 07 |
| Number Of Cutter Inserts | 3 |
| Overall Length (mm) | 150.0000 |
| Series | EWD-07 |
| Flute Type | Straight |
| Head Length (mm) | 40.00 |
| Tool Application | Milling |
| Primary Workpiece Material | Universal |
| UNSPSC Code | 27112803 |
| Number Of Flutes | 3 |
| Cutting Diameter (mm) | 8.00 |
| Minimum Cutting Diameter (mm) | 8.00 |
| Maximum Cutting Diameter (mm) | 15.00 |
| Maximum Depth of Cut (mm) | 3.50 |
| Toolholder Style | EWD |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 20.0000 |
| Maximum Ramping Angle | 25.0 |
| Compatible Insert Style | RDMW |
| Insert Holding Method | Screw |
| Compatible Insert Size Code | 07 |
| Number Of Cutter Inserts | 3 |
| Overall Length (mm) | 150.0000 |
| Series | EWD-07 |
| Flute Type | Straight |
| Head Length (mm) | 40.00 |
| Tool Application | Milling |
| Primary Workpiece Material | Universal |
| UNSPSC Code | 27112803 |
| Number Of Flutes | 3 |
| MSC Part # | 63161517 |
| Mfr Part # | 6817718 |
| Country of Origin Country of Origin is subject to change | Japan |
