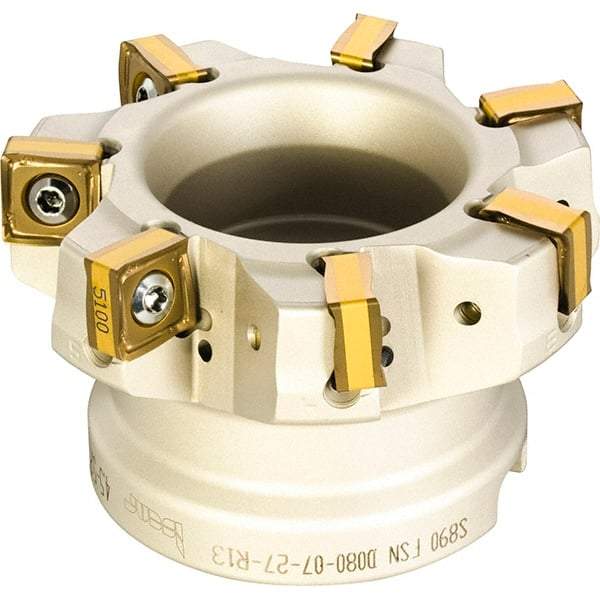

Iscar - 4" Cut Diam, 1-1/2" Arbor Hole, 0.354" Max Depth of Cut, 88° Indexable Chamfer & Angle Face Mill - 8 Inserts, OXMT 0507\xB6S890 SNMU 1305 Insert, Right Hand Cut, 8 Flutes, Through Coolant, Series Helido
Item #: 85457786
Brand: Iscar
Model #: 3106094
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 4.0000 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Lead Angle | 88 |
| Overall Height (Decimal Inch) | 2.0000 |
| Insert Compatibility | OXMT 0507; S890 SNMU 1305 |
| Series | Helido |
| Through Coolant | Yes |
| Maximum Depth of Cut (Decimal Inch) | 0.3540 |
| Number of Cutter Inserts | 8 |
| Insert Holding Method | Screw |
| Cutter Style | S890 FSN-13 |
| Number of Flutes | 8 |
| Cutting Direction | Right Hand |
| Cutting Edge Length (Decimal Inch) | 0.3540 |
| Maximum Insert Radius (Decimal Inch) | 0.0310 |
| Complete Insert Compatibility | OXMT 0507; S890 SNMU 1305PN... |
