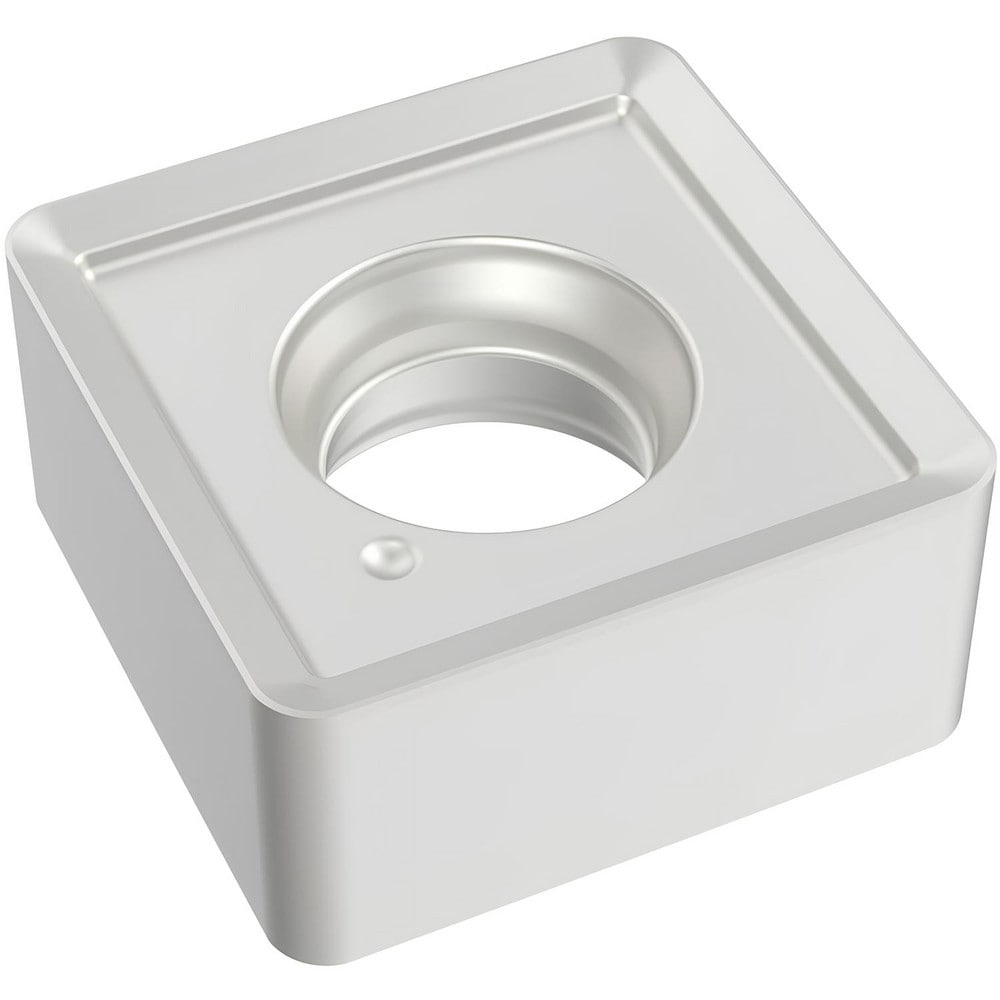

Brand: Seco / Part #: 10127707
Item #: 40068579
Brand: Seco
Model #: 10127707
Product Specifications
| Insert Style | SNGU |
| Insert Size Code | 130612 |
| Insert Size | 13 |
| Insert Material | Carbide |
| Manufacturer Grade | MP1501 |
| Thickness (Inch) | 7/32 |
| Inscribed Circle (Decimal Inch) | 0.5354 |
| Corner Radius (Inch) | 3/64 |
| Insert Hand | Neutral |
| Relief Angle | 0.000 |
| Series | SNGU |
| Coating Process | CVD |
| Hole Diameter (Decimal Inch) | 0.2264 |
| Maximum Depth of Cut (Decimal Inch) | 0.4882 |
| Number Of Cutting Edges | 8 |
| Cutting Edge Effective Length (Decimal Inch) | 0.4882 |
| Insert Shape | Square |
| Rake | Negative |
| Primary Workpiece Material | Hard Material; Cast Iron; Steel |
| Primary Workpiece Material Code | P; H; K |
| Ansi Code | SNGU130612TN-M14 |
| Iso Code | SNGU130612TN-M14 |
| Cutting Edge Style | Chamfered & Honed |
| Manufacturers Catalog Number | SNGU130612TN-M14 |
| Cutter Series Compatibility | R220.81; R220.82; R217.81; R217.82 |
| Chip Breaker | M14 |
| Cutting Direction | Neutral |
| Shape | Square |
| Insert Holding Method | Screw |
| Coating Classification | CVD |
| Single or Double Sided Insert | Double |
| Coating/Finish | TiCN; Al2O3 |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.5354 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.5354 |
