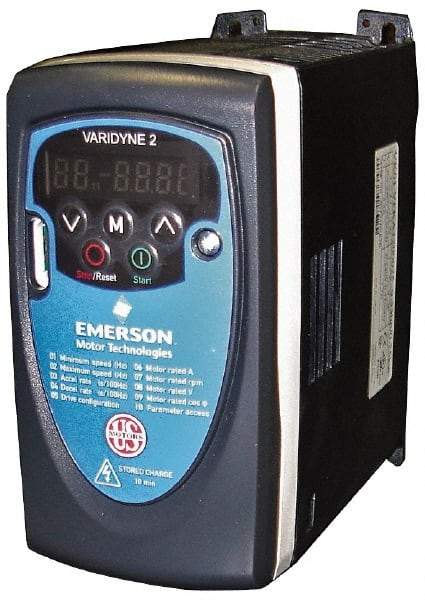

US Motors - Three Phase, 200-240 Volt, 1/3 hp, Variable Frequency Drive - 3" Wide x 5.71" Deep x 6" High, NEMA 1
Item #: 85174654
Brand: US Motors
Model #: VFKA1200025
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Variable Frequency Drive |
| Horsepower | 1/3 |
| Voltage | 200-240 |
| Output Amps at Standard Operation | 0.25 |
| Output Amps at Peak Operation | 1.75 |
| Frequency Hz | 60/50 |
| Phase | Three |
| Type of Enclosure | NEMA 1 |
| Output Frequency Range Hz | 0-1500 |
| Depth (Inch) | 5.7100 |
| Height (Inch) | 6.00 |
| Width (Decimal Inch) | 3.0000 |
| Approval Listing/Regulations | UL; CE; CE-PLENUM; C-Tick |
