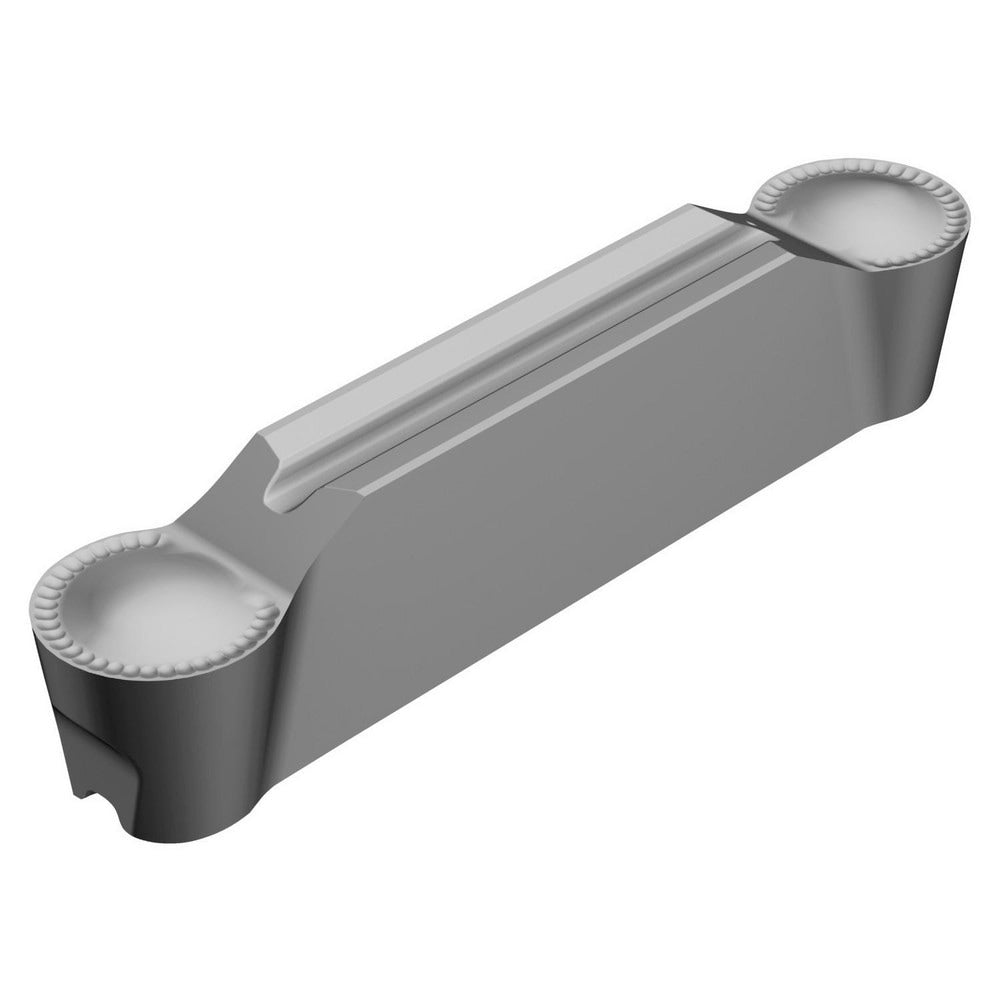

Profiling Insert: C2I-G2N-0400-RM 5015, 4.3300 mm Thickness
Item #: 01030352
Brand: Sandvik Coromant
Model #: 8290307
Product Specifications
| Insert Style | C2I |
| Insert Size Code | G2 |
| Insert Material | Cermet |
| Manufacturer Grade | 5015 |
| Thickness (mm) | 4.3300 |
| Maximum Depth of Cut (Decimal Inch) | 0.0512 |
| Maximum Depth of Cut (mm) | 1.80 |
| Insert Holding Method | Clamp |
| Insert Hand | Neutral |
| Corner Radius (Decimal Inch) | 0.0787 |
| Corner Radius (mm) | 2.00 |
| Relief Angle | 7.000 |
| Chipbreaker | RM |
| Series | CoroCut 2 |
| Coating Process | Uncoated |
| Insert Length (Decimal Inch) | 0.7894 |
| Insert Length (mm) | 20.05 |
| Number Of Cutting Edges | 2 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Stainless Steel |
| Secondary Workpiece Material Code | M |
| Iso Code | C2I-G2N-0400-RM 5015 |
| Standards | ISO |
| Rake Angle | 0.000 |
| Side Length (Decimal Inch) | 0.7894 |
| Side Length (mm) | 20.05 |
| Applications | Profiling |
| Coating/Finish | Uncoated |
| Thickness (Decimal Inch - 4 Decimals) | 0.1706 |
| Width (Decimal Inch - 4 Decimals) | 0.1575 |
| Width (mm - 2 Decimals) | 4.00 |
| UNSPSC Code | 23242105 |
