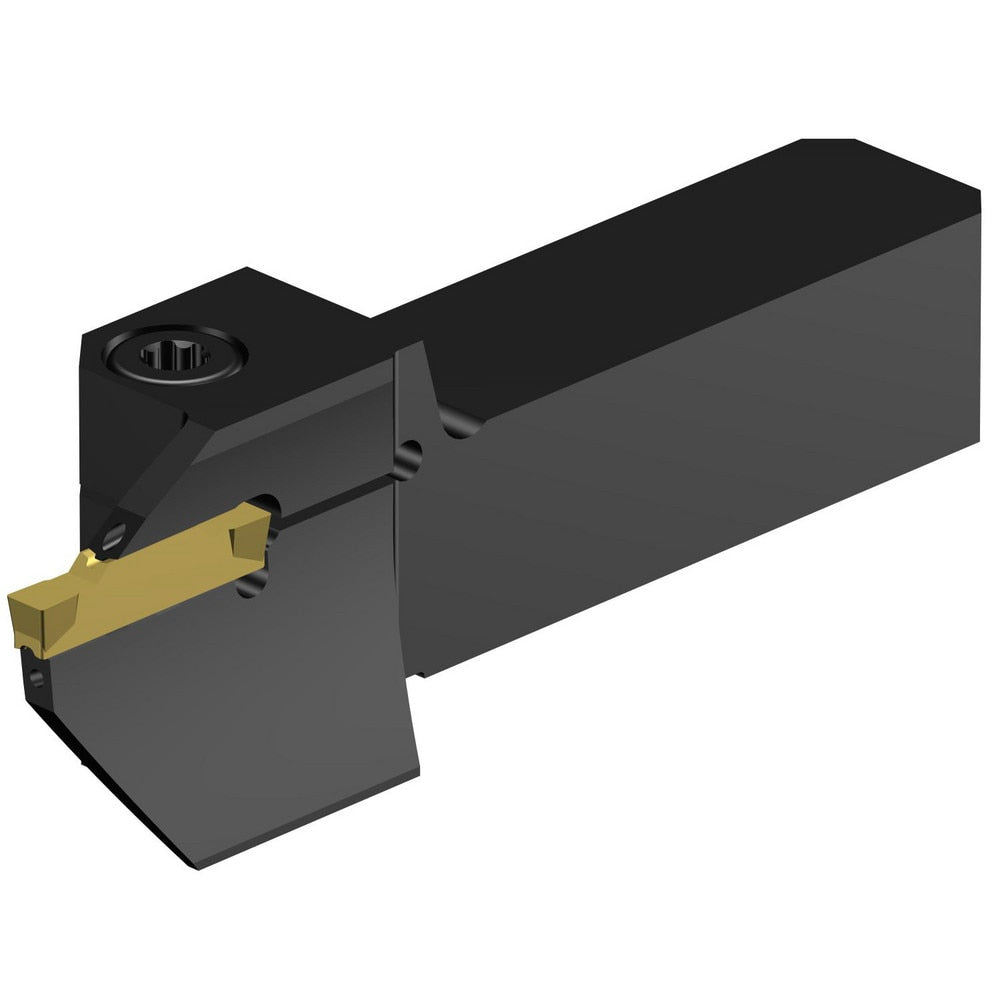

Indexable Grooving Toolholder: C2A-QS20-RFH18B-092CB, Internal or External, Left Hand, Right Hand & Neutral, 5.5118" Max Groove Width
Item #: 01199942
Brand: Sandvik Coromant
Model #: 8273658
Product Specifications
| Internal or External | Internal or External |
| Toolholder Type | Face Grooving |
| Insert Seat Size | 4.00 |
| Hand of Holder | Right Hand |
| Cutting Direction | Right Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.7087 |
| Maximum Depth of Cut (mm) | 18.00 |
| Minimum Groove Width (Decimal Inch) | 3.6221 |
| Minimum Groove Width (mm) | 92.00 |
| Maximum Groove Width (mm) | 140.00 |
| Toolholder Style | C2A-QS..RF..B..CB |
| Maximum Groove Width (Decimal Inch) | 5.5118 |
| Insert Holding Method | Screw; Clamp |
| Compatible Insert Size Code | H2 |
| Shank Width (Decimal Inch) | 0.7874 |
| Shank Width (mm) | 20.00 |
| Shank Height (mm) | 20.00 |
| Shank Height (Decimal Inch) | 0.7874 |
| Series | CoroCut 2 |
| Overall Length (mm) | 107.1 |
| Overall Length (Decimal Inch) | 4.2165 |
| Back of Bar to Cutting Edge (mm) | 107.10 |
| Back of Bar to Cutting Edge (Decimal Inch) | 4.2165 |
| Center to Cutting Edge (Decimal Inch) | 0.8071 |
| Center to Cutting Edge (mm) | 20.50 |
| Head Height (Decimal Inch) | 0.7874 |
| Head Height (mm) | 20.000 |
| Head Length (Decimal Inch) | 2.1893 |
| Head Length (mm) | 55.61 |
| UNSPSC Code | 27112809 |
| Vibration Dampening | No |
| Maximum Groove Outside Diameter (mm) | 140.00 |
| Maximum Groove Outside Diameter (Decimal Inch) | 5.5118 |
| Minimum Axial Groove Inside Diameter(mm) | 92.0000 |
| Minimum Axial Groove Inside Diameter (Decimal Inch) | 3.6221 |
| Mount Type | Clamp |
| Full Radius Insert | No |
| Manufacturers Catalog Number | C2A-QS20-RFH18B-092CB |
| Toolholder Material | Steel |
| Insert Hand | Neutral; Left Hand; Right Hand |
| Complete Insert Compatibility | C2I-H2-0400- |
| Coolant Through | Yes |
