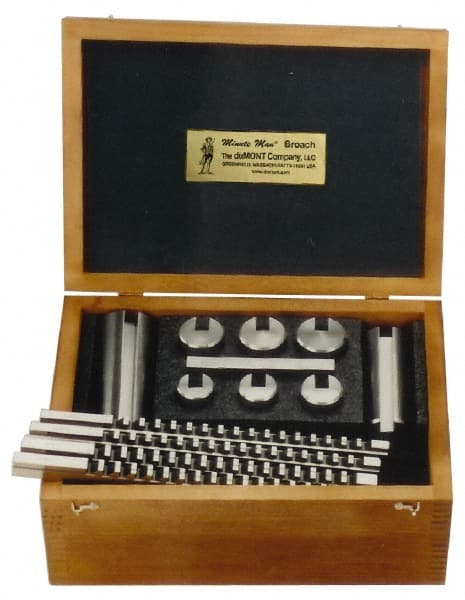

Dumont Minute Man - 12 Piece, 5/16 to 1/2" Keyway Width, Style D Keyway Broach Set
Item #: 00309146
Brand: Dumont Minute Man
Model #: 11127
Features and Benefits
Keyway broaches are used for producing keyway-shaped holes in a workpiece. They may be used with shims if the depth cannot be broached in a single pass. They also require a guide bushing for producing the keyway.
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications for both ferrous and nonferrous materials.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
| Product Specifications | |
|---|---|
| Broach Style | D |
| Minimum Keyway Width (Inch) | 5/16 |
| Maximum Keyway Width (Inch) | 1/2 |
| Minimum Bushing Diameter (Inch) | 1-1/2 |
| Maximum Bushing Diameter (Inch) | 2-1/2 |
| Bushing Type | Plain |
| Keyway Broach Type | Keyway |
| Keyway Width (Inch) | 5/16; 3/8; 7/16; 1/2 |
| Broach Material | High Speed Steel |
| Broach Coating | Bright |
| Number of Pieces | 12 |
| Vendor Set Number | No. 40A |
