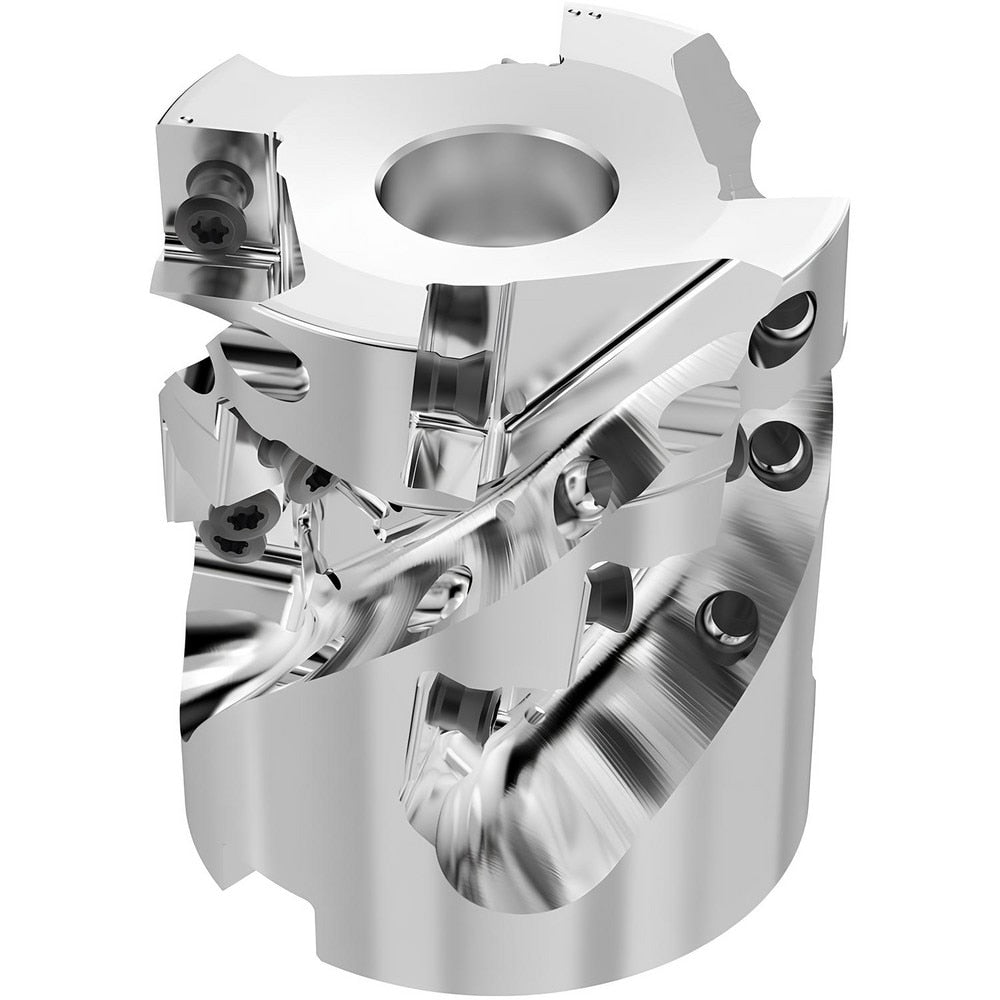

Brand: Seco / Part #: 10127491
Item #: 40068074
Brand: Seco
Model #: 10127491
Product Specifications
| Minimum Cutting Diameter (mm) | 63.00 |
| Maximum Cutting Diameter (mm) | 63.00 |
| Maximum Depth of Cut (mm) | 46.00 |
| Arbor Hole Diameter (mm) | 27.00 |
| Compatible Insert Size Code | AC.T1506; SN.U1306 |
| Maximum Ramping Angle | 0.0 |
| Cutter Style | R220.82 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Lead Angle | 90 |
| Rake | Negative |
| Rake Angle | -13.000 |
| Series | R220.82 |
| Overall Height (Mm - 5 Decimals) | 70.00000 |
| Keyway Width (mm) | 12.40 |
| Hub Diameter (mm) | 59.000 |
| Pitch Type | Normal |
| Maximum RPM | 7400.000 |
| Tool Application | Slotting; Shouldering |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Keyway Depth (mm) | 7.00 |
| Number of Adjustable Pockets | 0 |
| ISO Number | R220.82-0063-046-SNAC15.4HA |
| Complete Insert Compatibility | AC.T1506; SN.U1306 |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | R220.82-0063-046-SNAC15.4HA |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 16 |
| Number Of Flutes | 4 |
