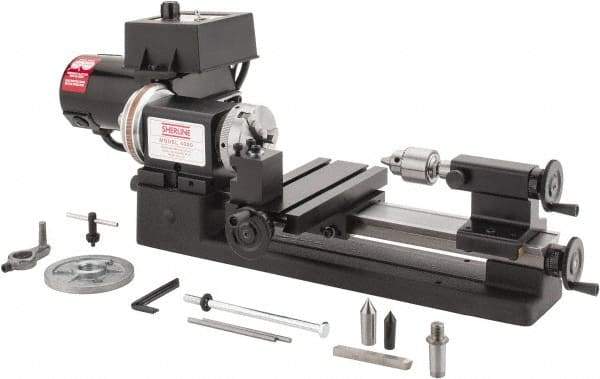

Sherline - 3-1/2" Swing, 8" Between Centers, 100/240 Volt, Single Phase Miniature Lathe - 1MT Taper, 1/2 hp, 70 to 2,800 RPM, 10mm Bore Diam, 260mm Deep x 203.2mm High x 584.2mm Long
Item #: 84999366
Brand: Sherline
Model #: 4000A
Exact Tooling IR#: 04
Features and Benefits
Miniature lathes, also known as hobby or micro-lathes, are used for machining small parts. They can have swings that range from 3" to 9" .
Frequency drive systems, also known as Electronic Variable Speed control (EVS), are similar to variable speed pulleys, but the speed is controlled electronically. These systems feature several speeds within a specified speed range.
Single-phase refers to one phase line (coil) that connects to and runs voltage through the motor. Single phase lines are not as efficient as three-phase motors.
| Product Specifications | |
|---|---|
| Machine Type | Miniature Lathe |
| Spindle Speed Control | Frequency |
| Phase | 1 |
| Voltage | 100/240 |
| Horsepower (HP) | 1/2 |
| Swing (Inch) | 3-1/2 |
| Distance Between Centers (Inch) | 8 |
| Spindle Bore Diameter (mm) | 10.00 |
| Spindle Taper Size | 1MT |
| Swing Over Cross Slide (mm) | 48.00 |
| Swing Over Cross Slide (Decimal Inch) | 1.7500 |
| Number of Spindle Speeds | Variable |
| Minimum Spindle Speed (RPM) | 70.00 |
| Maximum Spindle Speed (RPM) | 2800.00 |
| Cross Slide Travel (mm) | 110.00 |
| Cross Slide Travel (Decimal Inch) | 4.2500 |
| Tailstock Taper Size | 0MT |
| Overall Length (mm) | 584.20 |
| Overall Length (Decimal Inch) | 24.0000 |
| Overall Height (mm) | 203.20 |
| Overall Height (Decimal Inch) | 6 |
| Overall Depth (mm) | 260.00 |
| Overall Depth (Decimal Inch) | 7.5000 |
| Includes 1 | 1/4" Tailstock Drill Chuck; 3-Jaw Chuck; PLUS 2.5 Decimal Inch |
