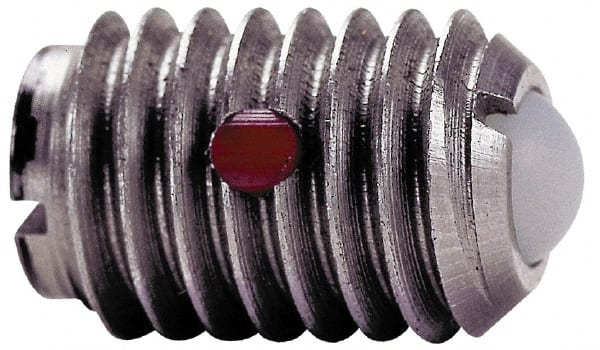

Threaded Ball Plunger: 1/4-20, 0.125″ Ball Dia, 17/32″ Body Length, 0.035″ Max Ball Reach 3 lb Initial End Force, 7 lb Final End Force, Stainless Steel Body, Nylon Ball, Locking Element
Item #: 84904242
Brand: TE-CO
Model #: 53838
Product Specifications
| Thread Size | 1/4-20 |
| Body Length | 17/32 |
| Body Material | Stainless Steel |
| Ball Material | Nylon |
| Ball Diameter (Decimal Inch) | 0.1250 |
| Initial End Force (Lb.) | 3.00 |
| Final End Force (Lb.) | 7.00 |
| Locking Element | Yes |
| Maximum Ball Reach (Decimal Inch) | 0.0350 |
| Color Code | Purple |
