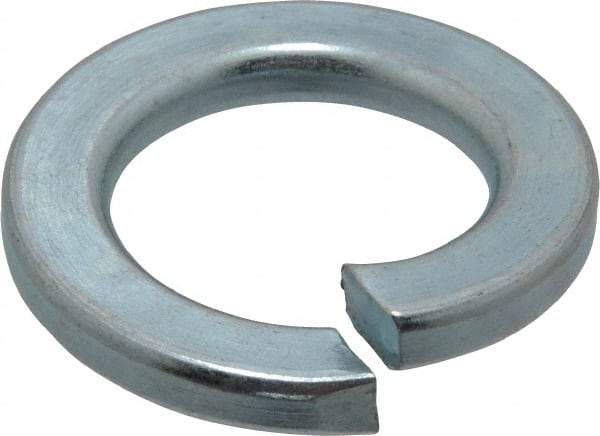

Value Collection - M20, 20.2mm ID, 33.6mm OD, 4mm Thick Split Lock Washer - Grade 8 Spring Steel, Zinc-Plated Finish, 20.2mm Min ID, 21.2mm Max ID
Item #: 84798958
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
Split lock washers have a split at one point along their outer diameter, which creates compression and tension to lock the nut in place. Split lock washers are used in high-vibration applications.
Spring steel is a low-alloy, carbon steel with very high yield strength.
| Product Specifications | |
|---|---|
| System of Measurement | Metric |
| Type | Split Lock Washer |
| Screw Size | M20 |
| Material | Spring Steel |
| Material Grade | Grade 8 |
| Finish/Coating | Zinc-Plated |
| Inside Diameter (mm) | 20.20 |
| Outside Diameter (mm) | 33.60 |
| Thickness (mm) | 4.00 |
| Minimum Inside Diameter (mm) | 20.20 |
| Maximum Inside Diameter (mm) | 21.20 |
| Minimum Outside Diameter (mm) | 33.60 |
| Maximum Outside Diameter (mm) | 33.60 |
| Military Specification | Does Not Meet Military Specifications |
| Maximum Thickness (mm) | 4.00 |
| Hardness | Rockwell C44-C51 |
| Fastener Standard | DIN 127 |
