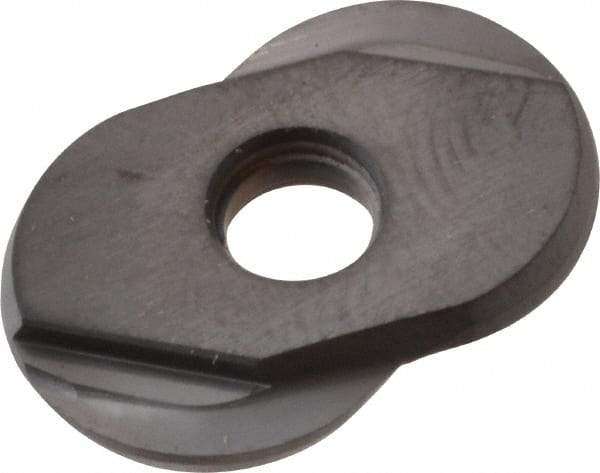

Minicut International - BNSI0500 Grade P30 Carbide Milling Insert - TiAlN Finish, 0.118" Thick, 1/2" Inscribed Circle, 1/4" Corner Radius
Item #: 84775543
Brand: Minicut International
Model #: BNSI-0500SUP30
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | BNSI |
| Insert Size | 0500 |
| Material | Carbide |
| Material Grade | C5 |
| Manufacturer's Grade | P30 |
| Coating | TiAlN |
| Length (Inch) | 3/4 |
| Length (Decimal Inch) | 0.7500 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (Decimal Inch) | 0.1180 |
| Corner Radius (Inch) | 1/4 |
| Corner Radius (Decimal Inch) | 0.2500 |
| Relief Angle | 0.000 |
| Shape | Ball Nose Rounded Tip |
